- Brand Name: LanYuXuan
- Origin: Mainland China
- Certification: CE
- Place of Origin: Guangdong, China
- Brand Name: TUYOU
- Model Number: TU-27LSH2B
- Power Source: Electric
- Warranty: 2 years
- After-sale Service: Online technical support
- Material: Metal, Plastic, Steel
- Shelf Life: 2 years
- Quality Certification: CE,FCC
- Instrument classification: Class II
- Safety standard: None
- Product Name: Medical Endoscopy Equipment
- Application: Laparoscopy/gynecology/Urology/ENT surgery etc.
- Display: 27 inch
- Power: AC110V-250V
- Image Sensor: 1/2.8" SONY CMOS
- Input Interface: SDI 1080P 60fps

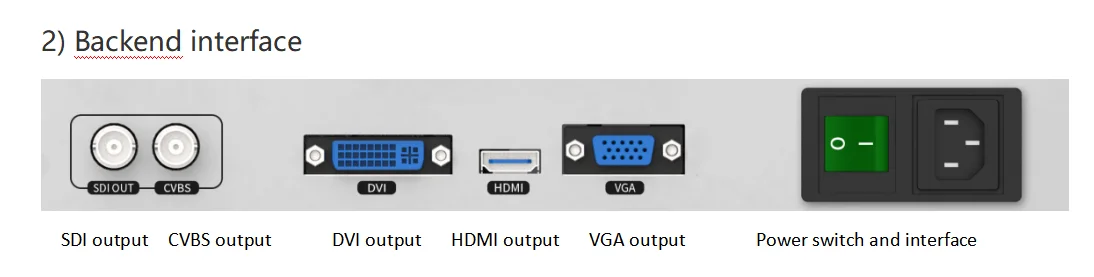

- Output interface: HDMI/SDI/CVBS/VGA/DVI
- Camera SNR(Signal Noise Ratio): More than 42Db(AGC off)
- AWB: Support
Product Parameters
|
Item No.
|
TU-27LSH2B (1080P Carema)
|
|
System Parameters
|
|
|
|
Input Interface
|
SDI 1080P 60FPS
|
|
|
Output Interface
|
HDMI/SDI/CVBS/VGA/DVI
|
|
|
Keypad Control
|
Control the mainboard menu and shortcut keys through RX/TX
|
|
|
Power
|
AC110V~240V
|
|
|
Shortcut Key Function
|
Freeze/White Balance/Video/Photo/Digital Zoom
|
|
|
Fixing bracket
|
Support
|
|
|
Maximum Resolution
|
1920*1080@60H
|
|
|
Noise
|
<45db
|
|
|
Working Environment
|
0℃~60℃
|
|
|
Display Size
|
L 660mm W 420mm H 90mm
|
|
|
Net Weight
|
12.4KG
|
|
|
Camera Parameters
|
|
|
|
Image Sensor
|
1/2.8” SONY CMOS
|
|
|
Effective Pixels
|
2 million pixels
|
|
|
Image size (horizontal x vertical)
|
1845(H) × 1097(V)
|
|
|
Scan System
|
Progressive scan
|
|
|
Signal output
|
SDI, CVBS, DVI, HDMI, VGA video signal
|
|
|
Features
|
27-inch Medical Grade Monitor+Light Source
|
|
|
Mode selection
|
ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
|
|
|
Resolution
|
SDI 1080P 60fps
|
|
|
D-Zoom
|
0-8x
|
|
|
Brightness
|
1-30 steps
|
|
|
Sharpness
|
1-40 steps
|
|
|
Color
|
RED/GREEN/YELLOW/BLUE
|
|
|
S/N Ratio (Signal to Noise Ratio)
|
More than 42Db(AGC off)
|
|
|
Language
|
Chinese, English, Japanese, Korean and other languages
|
|
|
Working Environment
|
0℃~60℃
|
|
|
Power(Max.) Supply
|
DC12V ±10% <3W
|
|
|
Working Current
|
250mA±10mA
|
|
|
Light Source Parameters
|
|
|
|
Light Type
|
LED
|
|
|
Effective Optical Power
|
100W
|
|
|
Illuminance
|
400W LUX
|
|
|
Color Temperature
|
5700K +/-500K
|
|
|
Brightness Adjustment
|
Support
|
|
|
Light Emitting Area (mm²)
|
7.7
|
|
Products Description
Product Composition Introduction:
The endoscope integrated imaging system consists of a 27-inch Display, Display Holder(the display also can be fix on endoscope cart, the cart is OPTIONAL part), Display Driver Board, Display LED Backlight, Camera Control System Motherboard, Light Source Control System, Handle Camera, Fiber Cable and Optical Adapter (Optical Interface).
The endoscope integrated imaging system consists of a 27-inch Display, Display Holder(the display also can be fix on endoscope cart, the cart is OPTIONAL part), Display Driver Board, Display LED Backlight, Camera Control System Motherboard, Light Source Control System, Handle Camera, Fiber Cable and Optical Adapter (Optical Interface).
TU-27LSH2B Video Light Source Video Recorder Features:
● 27 inch 1080P high-definition display screen;
● Built-in LED imported cold light source;
● One-key freeze, one-key white balance, one-key zoom in and out;
● One-key photo/video function;
● Multi-angle height, adjustable at will;
Customer Feedback
Company Profile
Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.
Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.
Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.
We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
Certifications
Packing & Delivery
27Inch 1080P Medical Endoscopy Equipment With Light Source for Packaging Standard Carton Box 1 Set/Carton box
FAQ
1.Who are we? We are an original manufacturer, located in Guangdong, China. Near export port,this is how we keep competitive strength for global valued customers. 2.How can we guarantee quality? We have got the ISO13485 qualification,We control the entire production process, from raw material procurement to the final product delivery, to ensure product quality and timely shipment. 3.Why should you buy from us not from other suppliers? Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. Our company has more than 20 years of experience in video research and and development,So we have the ability to provide OEM/ODM services. 4.What is the warranty? The free warranty is two years. If there has any problem of products we will repair and change the problematic parts for free during the warranty period . 5.What’s the payment term? We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
