Elite LCD Screen Dental Surgical Instruments Implant Motor System


Elite LCD Screen Dental Surgical Instruments Implant Motor System


Availability: 999 in stock

Add to Wishlist
Add to Wishlist
SKU: 3256805575360618 Categories: ,
Guaranteed Safe Checkout
  • Commodity Quality Certification: ce,3C
  • Model Number: V-DIM-I
  • Brand Name: skylundent
  • Origin: Mainland China
  • Place of Origin: China
  • Power Source: Electric
  • Warranty: 1 Year
  • After-sale Service: Online technical support
  • Shelf Life: 3 years
  • Quality Certification: ce
  • Instrument classification: Class II
  • Safety standard: None
  • Product Specification: 57*45*22cm
  • Name: Dental Implant Motor
  • Input Power Supply: AC100-110V or AC220-240V 50/60Hz
  • Output Power: 210W
  • Motor Rotation Speed Range: 1000rpm-40000rpm (1:1)
  • Torque Range: 10-60N.cm (20:1)
  • Coolant Flow: 0-100ml/min
  • Stored Programs: 10 types
  • Foot Switch Control: Coolant Flow, Program, Forward / Reverse, Speed

Elite LCD Screen Dental Surgical Instruments Implant Motor System

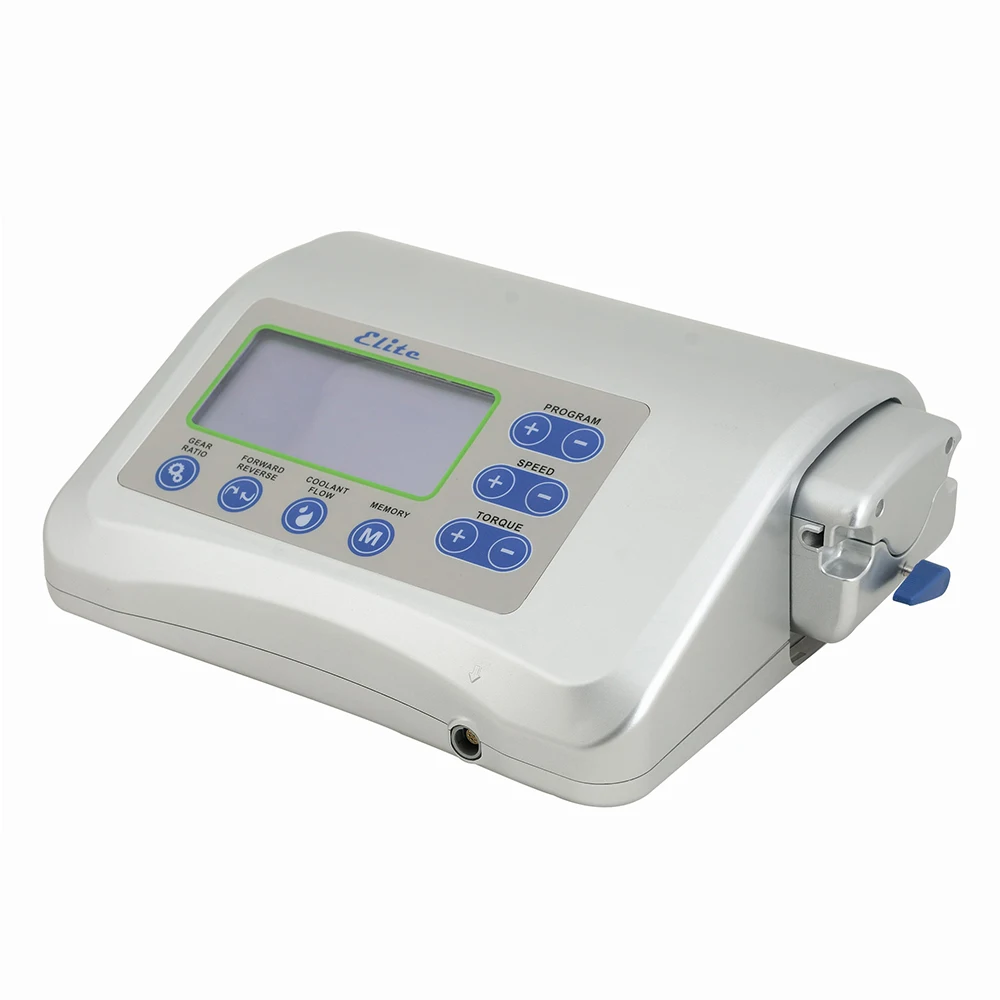

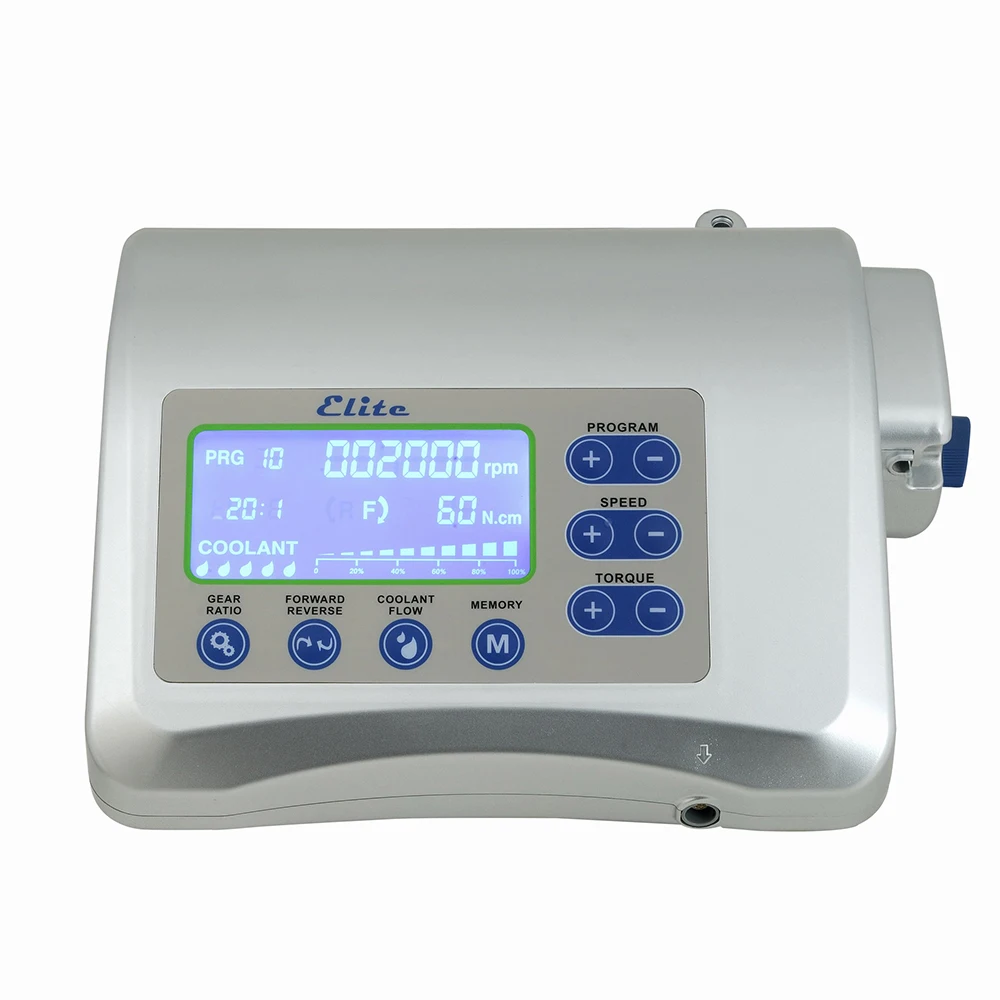

1) Intuitive LCD display and control panel bring convenience to the operation.
2) Original imported brushless motor is characterized by great torque, low noise, non-vibrations as well as accuracy.
3) Alternative input supply voltage: AC100-110V or AC220-240V.

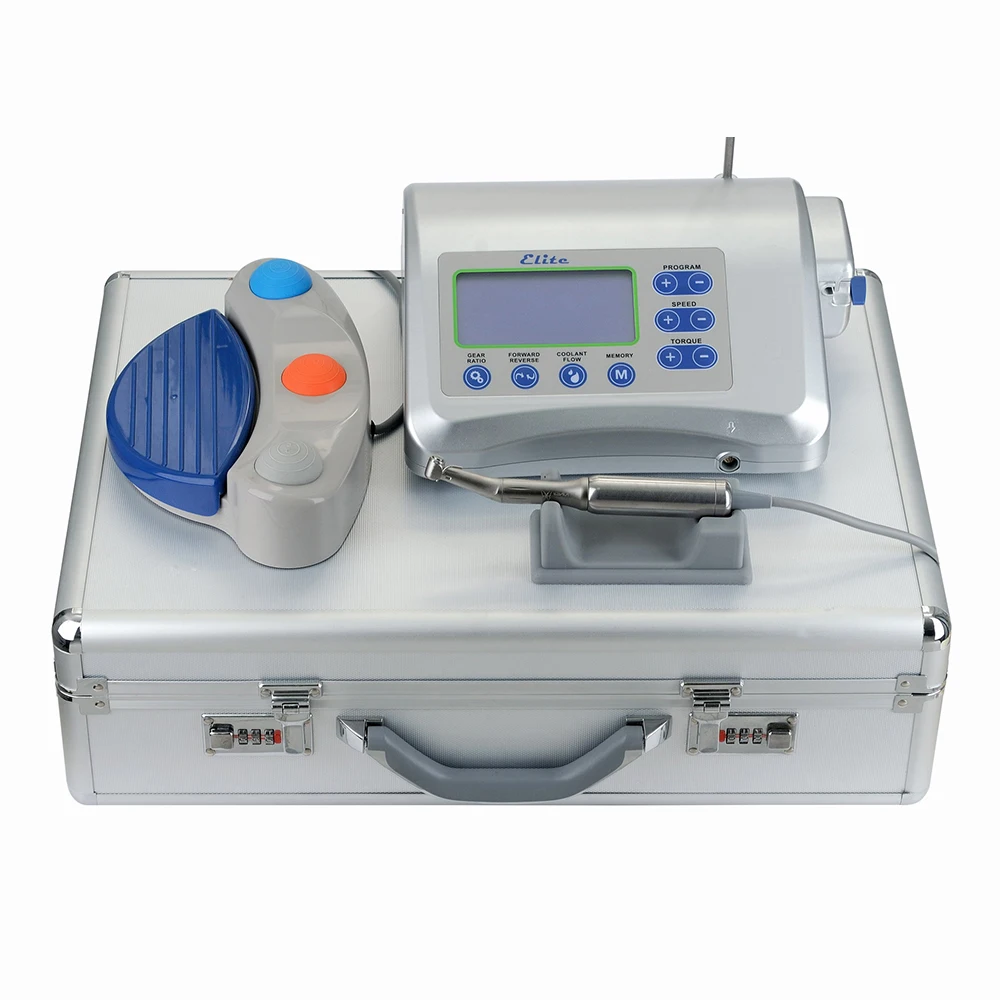

4) Multifunctional foot switch is not only handy to operate but also against cross-infection caused by the contact between hands and the device.
5) Adjustable rotation speed, torque, coolant flow and forward/reverse, which can meet various demands during implanting process.
6) 10 types of reduction contra angles are able to be selected in order to meet various clinical demands.
7) 10 kinds of program settings. Each of which allows setting up different values of rotation speed, torque, coolant flow, forward/ reverse and reduction ratio.

Product Name
Dental Implant Motor
Elite V-DIM-I
Input Power Supply
AC 110V / AC 220V, 50Hz / 60Hz
Output Power
Motor Rotation Speed Range
1000rpm -40000rpm (1:1)
Torque Range
10-60N.cm (20:1)
Coolant Flow
Stored Programs
10 types
Foot Switch Control
Coolant Flow, Program, Forward / Reverse, Speed
Single Package Size
Single Gross Weight
Wuhan Jinguang Medical Technology Co., Ltd.
A professional dental manufacturer integrating research & development, production and sales of dental products. We specialized in this field for over 20 years.

Covering an area of 43,000 square meters, our company has 240 employees including more than 110 professional technicians and more than 500 sets of specialized manufacturing facilities. Our company has been devoted to product research, development and technology innovation for a long time and we gained more than 40 National Patents. Based on outstanding craftsmanship and scientific management, strong technical personal and independent export rights, Jinguang brand impression trays, brass dowel pins, articulators, cheek retractors, dental box, dental workstation, dental cabinet, vacuum former, model trimmer and other dental equipment are popular in China and recognized in America, Europe, the Middle East, Southeast Asia market. Read More…
> 20 years manufacturing experience in dental equipment.

> 43,000 square meters factory area, over 500 sets specialized manufacturing facilities.
> 240 employees, with professional R&D, Production, PM, QC and Logistic teams.
> 40 National Patents.
> The enterprise has obtained the certification of IS09001 Quality Assurance System.

> The products are subject to strict quality inspection and can provide certificates such as CE.
> Market recognition, JINGUANG brand impression trays and brass dowel pins have an absolute leading position in
the domestic and foreign markets.
> OEM since 2009, customers from America, Europe, Middle East, Japan, etc.
> Global integrated supply chain for global medical institutions and health terminal customers, we have maintained

long-term cooperation with more than 100 famous brands from China, Japan, South Korea, the United States,
Germany and other countries.
> Wide product range, large stock provides low MOQ, fast delivery and affordable price.

> 7×24 service team, professional to provide you with one stop dental supplies procurement services.
> Welcome To Visit Our Factory Or Negotiate Face-To-Face With Us At The Annual Exhibition As IDS, AEEDC,

Sino-Dental, DenTech China, etc.
