- DIY Supplies: Metalworking
- Origin: Mainland China
- Certification: CE
- Place of Origin: China
- Brand Name: CONTEC
- Model Number: CMS1700B
- Power Source: Electric
- Warranty: 1 Year, 1 Year for main unit and 6-month for accessories
- After-sale Service: Online technical support
- Material: Plastic
- Shelf Life: 3 years
- Quality Certification: ce
- Instrument classification: Class II
- Safety standard: None
- product name: ultrasound scanner
- Type: CMS1700B
- Optional Probe: Linear/Cardiac/rectal
![](https://ae01.alicdn.com/kf/Sa89b9bd1446449de9101ed400807a358D.jpg?width=999&height=1366&hash=2365)
![](https://ae01.alicdn.com/kf/Sa8b6b8d700d748afb945fa6a766013cfi.jpg?width=999&height=1366&hash=2365)
![](https://ae01.alicdn.com/kf/S96852006f2d349b4b0cb53df2775cc89R.jpg?width=1004&height=1366&hash=2370)
![](https://ae01.alicdn.com/kf/Sb2e109f8e20649d2b46f204570ec63e4M.jpg?width=999&height=1366&hash=2365)
![](https://ae01.alicdn.com/kf/Sa3d87f78a2ac459184c6f920fb8ab5c0j.jpg?width=1000&height=1000&hash=2000)

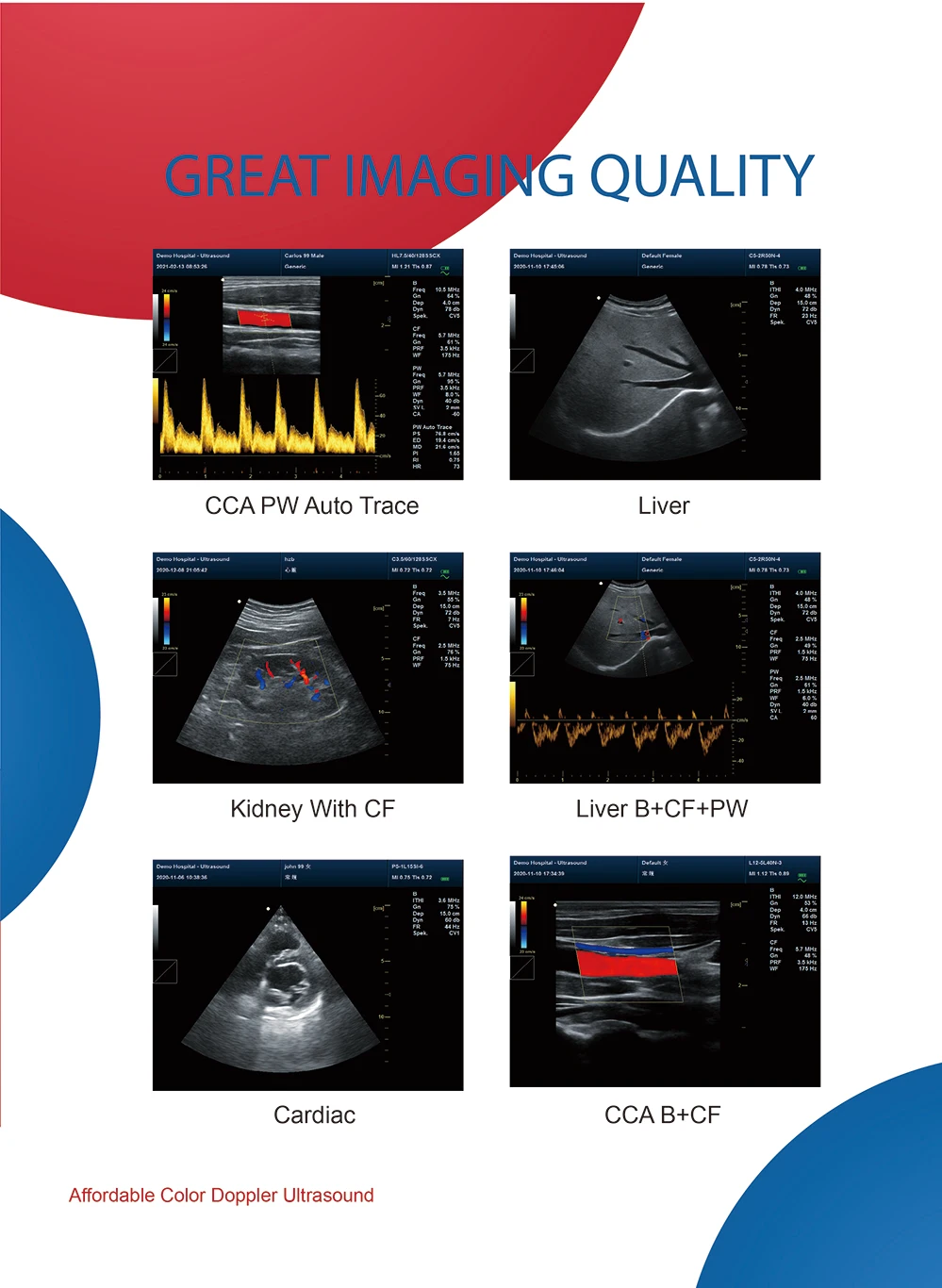

1)Color Doppler (CF), color power Doppler imaging (PDI).
2)Pulse spectrum Doppler (PW),
3)Continuous wave Doppler (CW) .
4)B+CF (Dual Images)
5)B+CF/PDI/DPDI+PW (Triplex)
6)3D, 4D imaging.(optional)
7)Superior in phased array cardiac imaging technology, complete in software package of cardiac measurement function.
8)Convex array extended imaging.
9)Linear array deflection/ trapezoid imaging.
10)Anatomic M-mode imaging.(optional)
11)space compounding imaging
12)Tissue harmonic imaging (THI).
13)Contrast agent imaging.(optional)
14)Wide scene imaging.(optional)
15)Puncture enhanced.(optional)
Performance
1)Display depth: ≥ 300 mm
2)Extended interface: VIDEO interface, S-VIDEO interface, RJ-45 interface, USB interface, VGA interface.
Safety
Type of protection against electric shock: class Ⅰ equipment
Degree of protection against electric shock: type B applied part
Operating voltage: AC 100 V~240 V
Operating frequency: 50 Hz/60 Hz
Power consumption: ≤ 100 VA

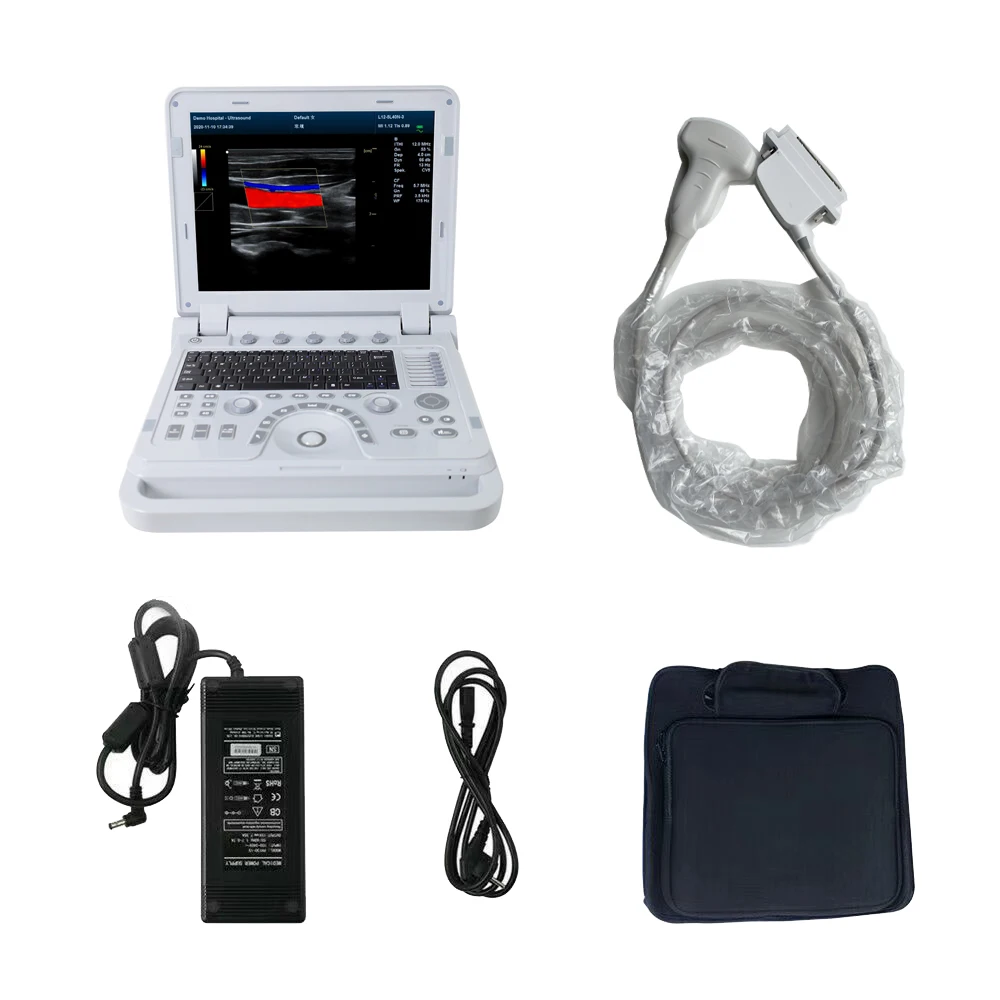

Accessories
One abdominal probe (3.5 MHz)
One User Manual
One power cord
One adapter
Physical characteristic
Dimension: 370 mm (L) × 360 mm (W) × 80 mm (H)
Weight: 6.5 kg
![](https://ae01.alicdn.com/kf/S11187bfdbf7541248e1ff75577712d71i.jpg?width=1000&height=1000&hash=2000)
A: We are manufacturer who has more than 25 years experience on research & design, production and sale.
your visiting!
A: Of course, we support OEM/ODM service. we can help design box according to your requirement. Moreover, we can also make mould
to provide device with different appearance.
A: We support alibaba trade assurance order, you can place order directly or contact us to draft order and send you payment link;
we can also issue invoice for you to pay by TT/Paypal/LC/Western Union etc.
A: Sample order will be sent within 2 days after receiving sample fee. 3-20 days for general order according to the quantity.
Customized order need mutual negotiation.
