- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Certification: CE
- Place of Origin: Zhejiang, China
- Brand Name: MEDCO
- Model Number: MK-ET700S
- Power Source: Electric
- Warranty: 1 Year
- After-sale Service: Online technical support
- Material: Metal, Plastic, Steel
- Shelf Life: 1years
- Quality Certification: CE ISO
- Instrument classification: Class II
- Safety standard: None
- Product name: Electric Operating Surgical Hydraulic Table
- Power Supply: 220V, 50Hz/110V,60Hz
- Downward/ Outward Angle of Leg Board: 90°/90°
- Upward/Downward Angle of Head Board: 45°/-90°
- Lateral Tilt: 15°/-15°
- Lifting Height: 550~850mm
- Function: Multi-function
- Feature: Electric

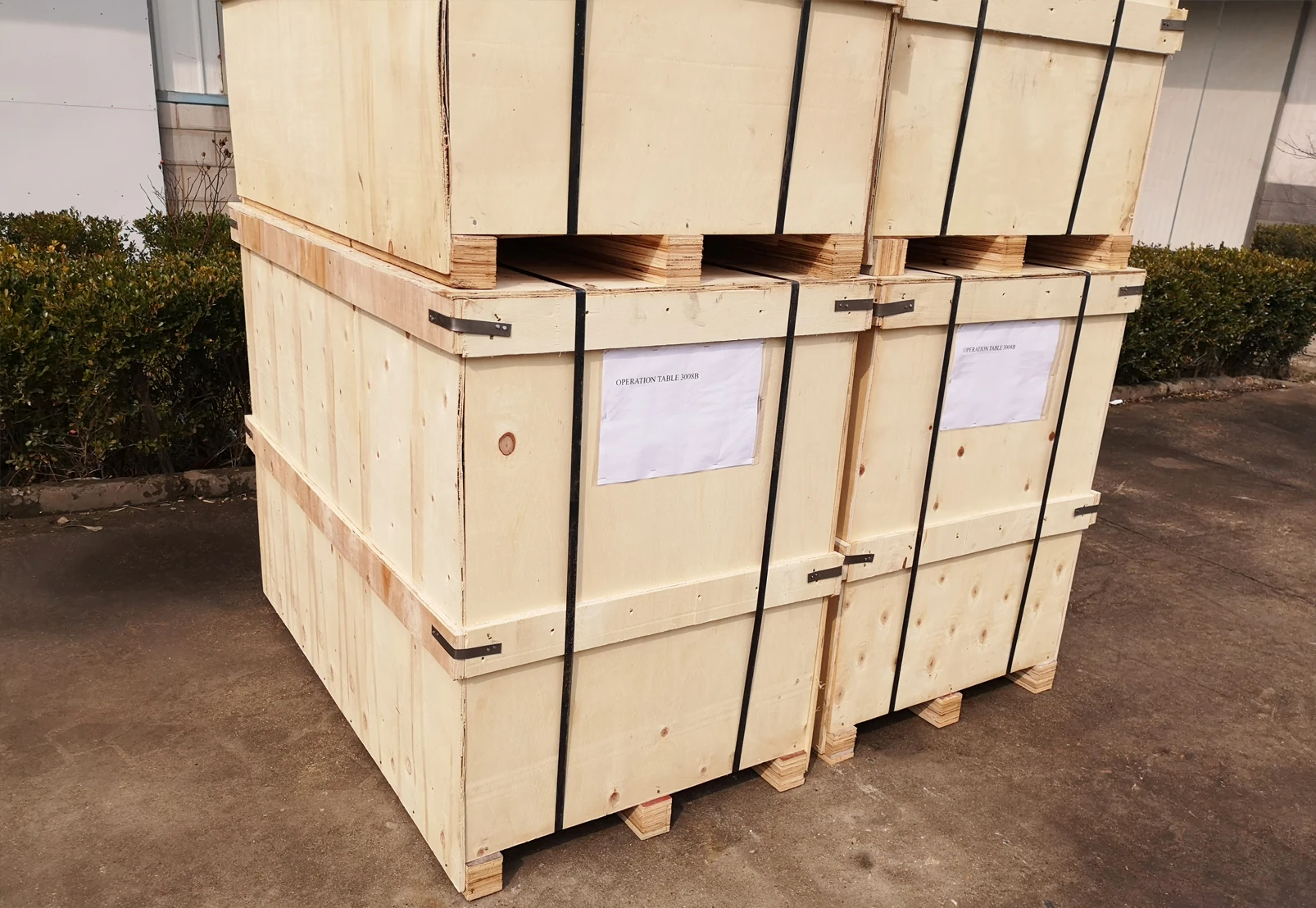

- Package: Wooden and vacuum box
If you have any questions, please contact us ,WhatsApp:+86 13808431675,Email:1005681402@qq.com.Please ignore the shipping cost displayed on the page. Please consult me for specific shipping costs.
![](https://ae01.alicdn.com/kf/Sef8b223e581947e8afdd8de585141110t.jpg?width=750&height=280&hash=1030)
Product Description

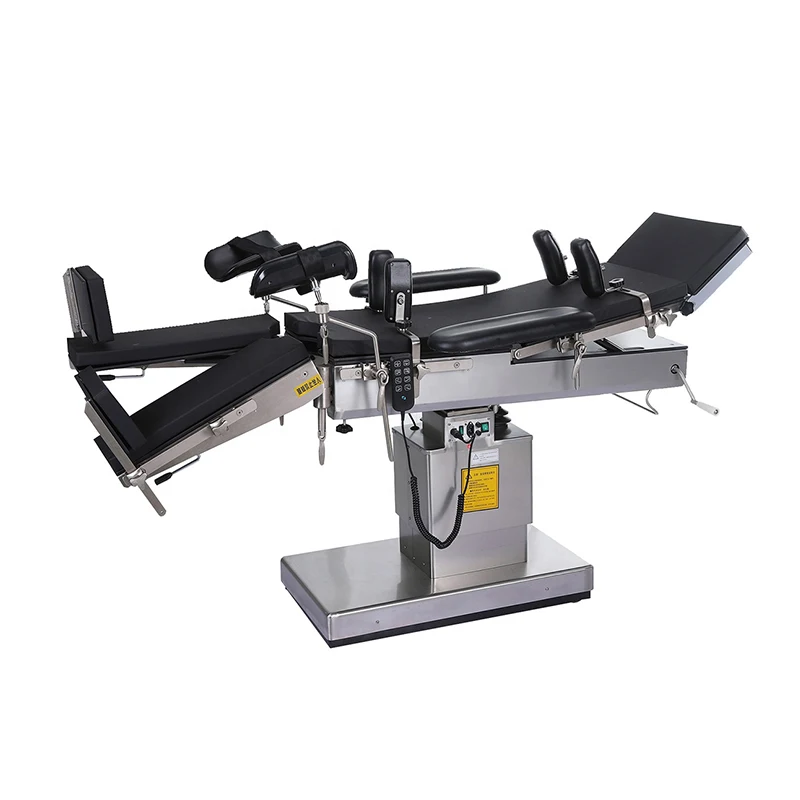

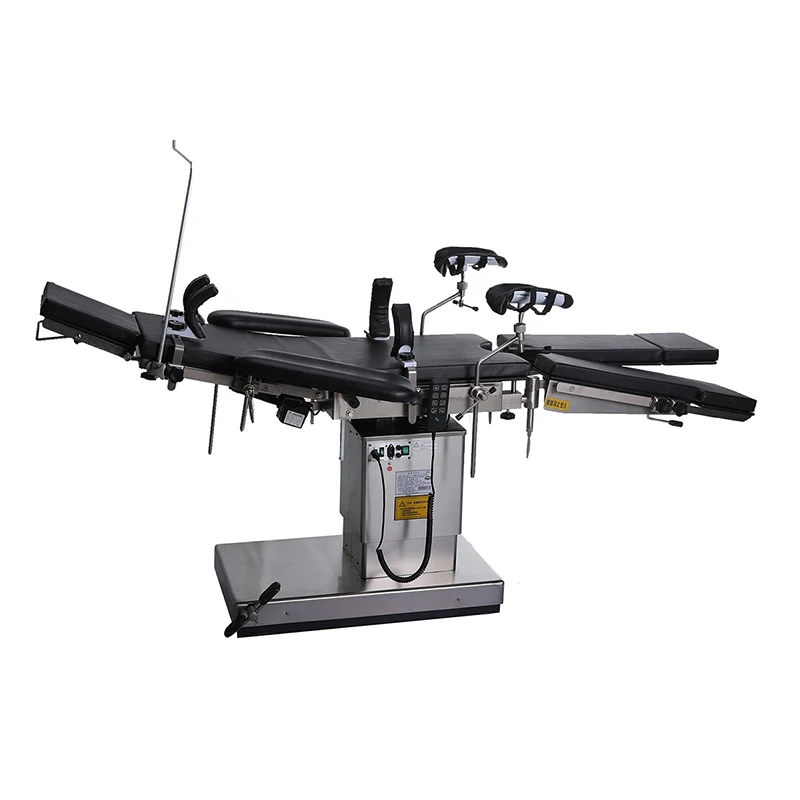

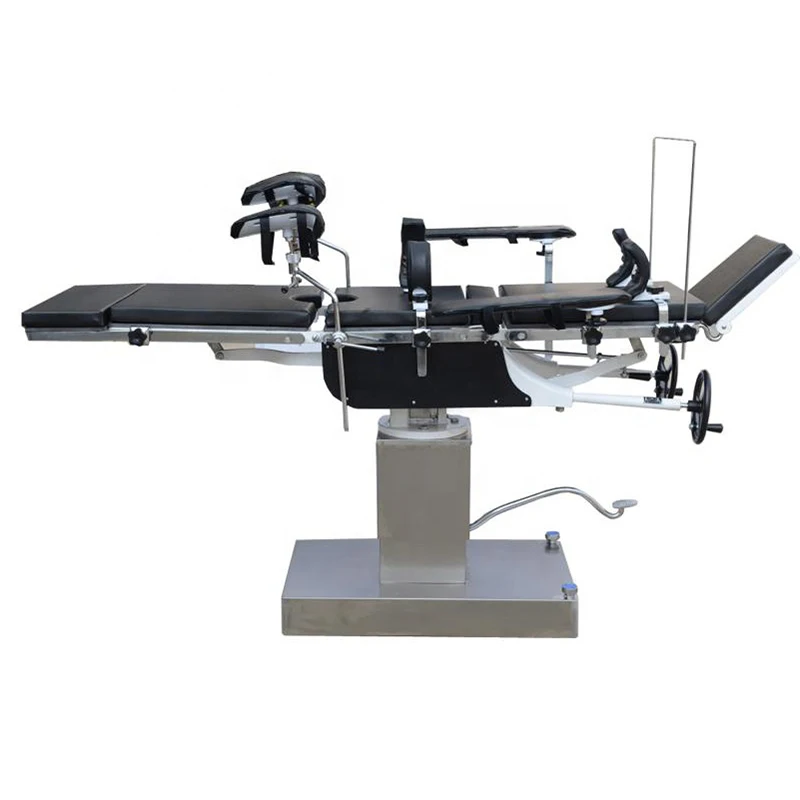

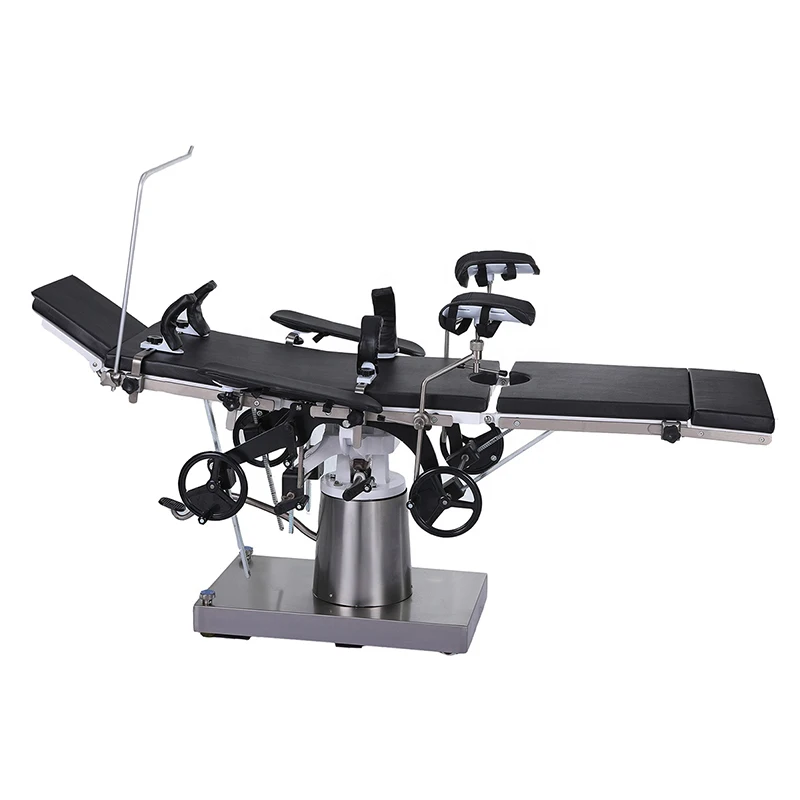

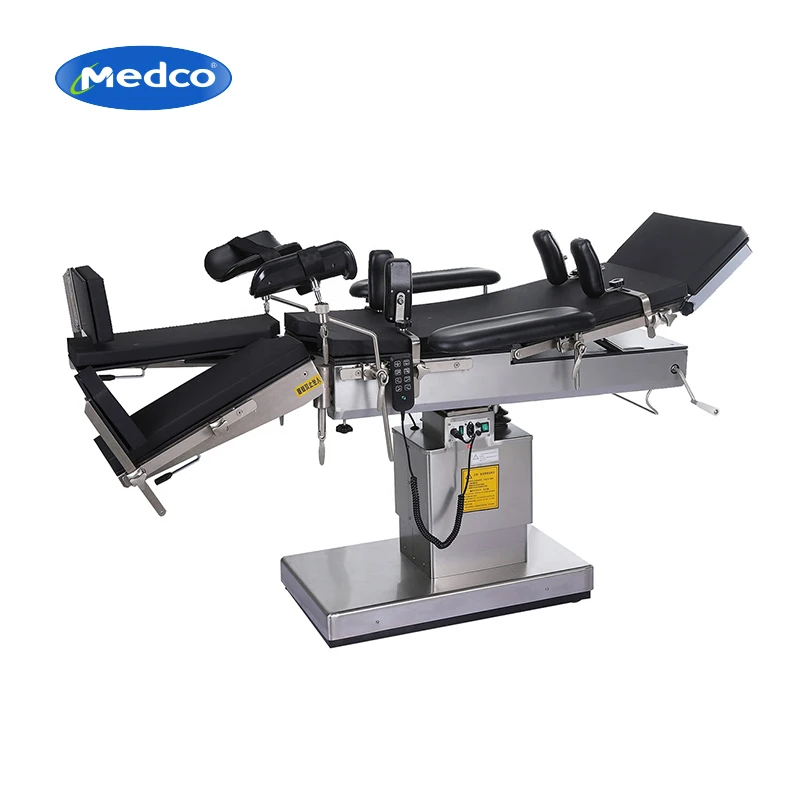

Electrical Operation Room Bed Surgical Hydraulic Electric Operating Table for hospital
Electric operating table is suitable for surgical procedures of the head, neck, thorax, abdomen perineum and extremities as well as for gynaecological, obstetrical, urological, otorhino laryngological and orthopaedics operations. It’s raising, lowering,lateral tilt, reversed trendelenburg and trendelenburg , the up-down folding of the back section are all conducted electrically and controlled by buttons.
Overall Length
|
2100mm
|
Width
|
480mm
|
Head Section
|
280×325mm
|
Back Section
|
500×480mm
|
Seat section
|
530×480mm
|
Leg Section
|
510×236mm
|
Foot Section
|
180×273mm
|
Kidney Bridge
|
100×480mm
|
Max Height
|
1000mm
|
Min Height
|
750mm
|
Reversed Tendelenburg
|
≥200
|
Trendelenburg
|
≥150
|
Lateral tilt
|
≥150
|
Head Section Raised from the horizontal
|
≥450
|
Head Section lowered from the horizontal
|
≥900
|
Kidney Bridge Elevated
|
≥100mm
|
Leg Section Lowered from the horizontal
|
≥900
|
Leg Section opened
|
≥900
|
Back Section Raised from the horizontal
|
≥450
|
Back Section lowered from the horizontal
|
≥50
|
Safe Working Load
|
150kg
|
Name of accessories
|
|
1
|
Head section
|
2
|
Stand for anaesthetic bottle
|
3
|
Body support
|
4
|
Shoulder support
|
5
|
Arm rest
|
6
|
Knee crutch
|
7
|
Cushion
|
8
|
Foot Section
|
9
|
Body Restraint Strap
|
10
|
Handle
|
![](https://ae01.alicdn.com/kf/S501bf2413fd8495e88660500716174eaz.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/S122e906d89a04a8aa63aecfef5a87c3cs.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/S18a5bbc6566343558de9cef5b450b73fA.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/Sc5a9f830340c4bfc8fce092c260a0061D.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/S285ddd4a38324608b4a5b14b34713cde9.jpg?width=800&height=800&hash=1600)
![](https://ae01.alicdn.com/kf/S3a485d92c65048298070c41b9787576b3.jpg?width=1606&height=1108&hash=2714)
Specification
Product name
|
Electric Operating Surgical Hydraulic Table
|
Power Supply
|
220V, 50Hz/110V,60Hz
|
Downward/ Outward Angle of Leg Board
|
90°/90°
|
Upward/Downward Angle of Head Board
|
+45°/-90°
|
Lateral Tilt
|
+15°/-15°
|
Lifting Height
|
550~850mm
|
Function
|
Multi-function
|
Feature
|
Electric
|
Package
|
Wooden and vacuum box
|
