- Brand Name: LanYuXuan
- Origin: Mainland China
- Certification: CE
- Brand Name: MSL
- Model Number: MSLYM21
- Place of Origin: China
- Instrument classification: Class II
- Warranty: 1 Year
- After-sale Service: Return and Replacement
- Display Screen: 5.7 inches LCD,Resolution 320*240
- memory capacity: 300 measurement records

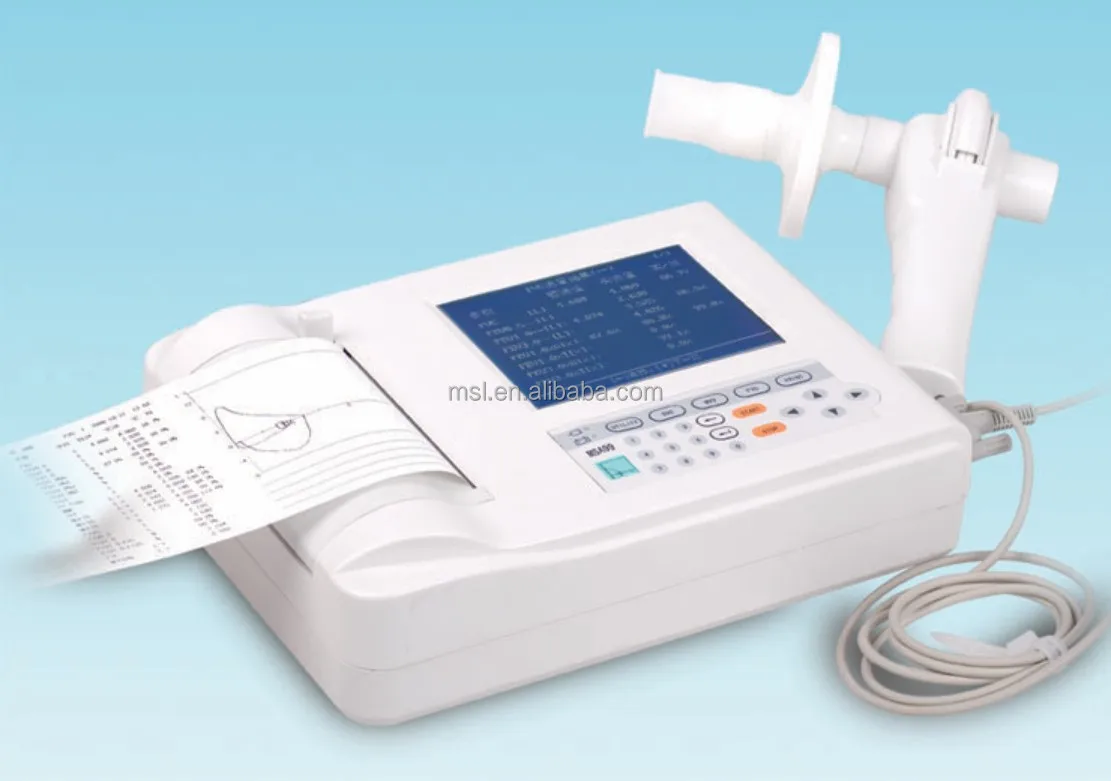

- Printer: Built-in precise 110mm thermal printer
- Capacity range: 0L ~ 9L
- Flow velocity range: 0 ~ 14L / s
- Measurement means: Flow velocity detection: pressure gradient pneumatic flow sensor
- ventilation volume: every 12 seconds, measuring 3
- Flow rate: 5% or 0.2L / s
- Packing size: 35.0*29.0*25.0cm
- G.W: 3.60kg
![](https://ae01.alicdn.com/kf/S35a52d888854493aab2bcce7f0aabd280.jpg?width=1200&height=800&hash=2000)
![](https://ae01.alicdn.com/kf/Sf1f8818c284b4ebfb1ded1805a8a9178J.jpg?width=1200&height=800&hash=2000)
![](https://ae01.alicdn.com/kf/S7c973fca72264c20b25b69dad640004eu.jpg?width=1200&height=800&hash=2000)
![](https://ae01.alicdn.com/kf/S428ff0d431d2453e8aa380791ae06a59L.jpg?width=4032&height=3024&hash=7056)
![](https://ae01.alicdn.com/kf/S9cba2f7a9d314ed0a93db9b34063b72e6.jpg?width=3024&height=4032&hash=7056)
![](https://ae01.alicdn.com/kf/S61432cceedf6437aa0eb9ea43f9bb5ccG.jpg?width=3024&height=4032&hash=7056)
![](https://ae01.alicdn.com/kf/S4d829141fc6644739b22557b6dc2b5f7j.jpg?width=3024&height=4032&hash=7056)
![](https://ae01.alicdn.com/kf/Seec40d563c654af09e663b3032a489626.jpg?width=1111&height=781&hash=1892)
![](https://ae01.alicdn.com/kf/S83cc411d8cef4b8bb7836277547a1920O.jpg?width=1007&height=952&hash=1959)
![](https://ae01.alicdn.com/kf/S8d7a404cb1a645b2a2e15b96174b03d5J.jpg?width=912&height=965&hash=1877)

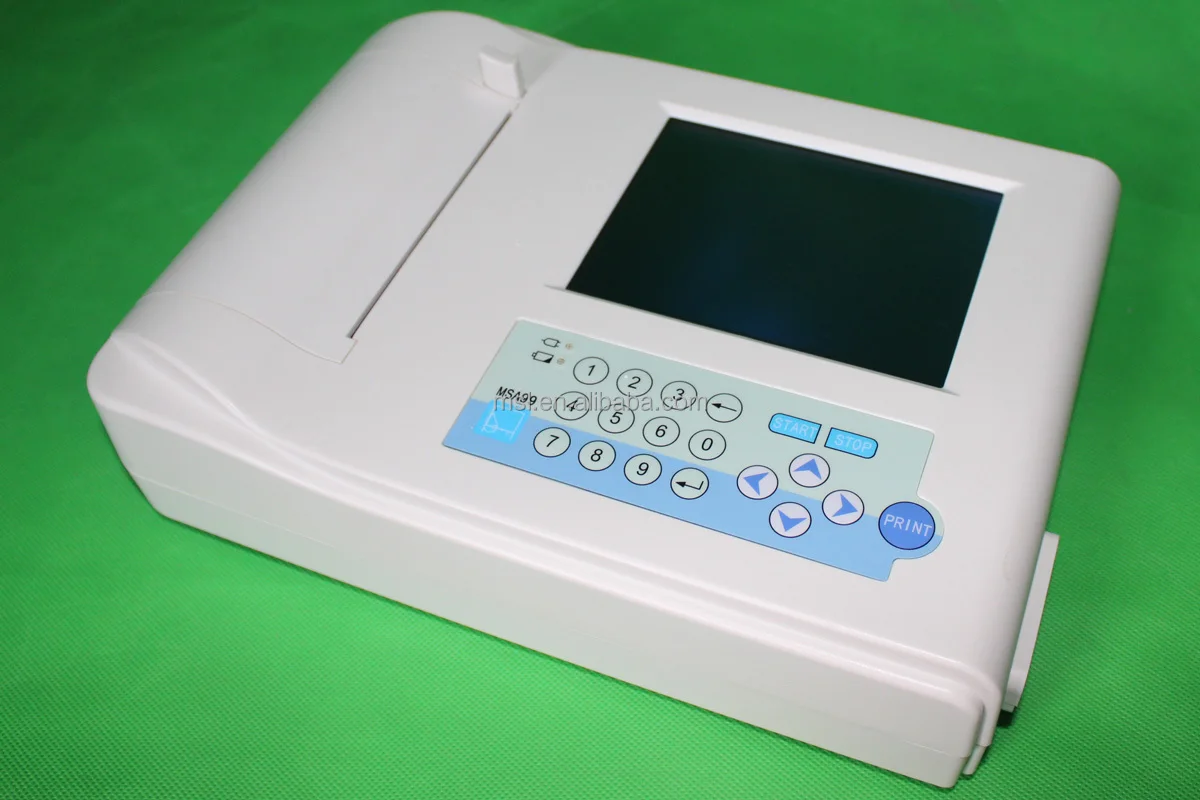

Control
|
Standard:UTILITY KEY,SVC KEY,FVC KEY,MVV KEY,PRINT KEY,10WORDS KEY,[ ]KEY, KEY,START KEY,STOP KEY, KEY, KEY, KEY, KEY
|
|
Light alarm
|

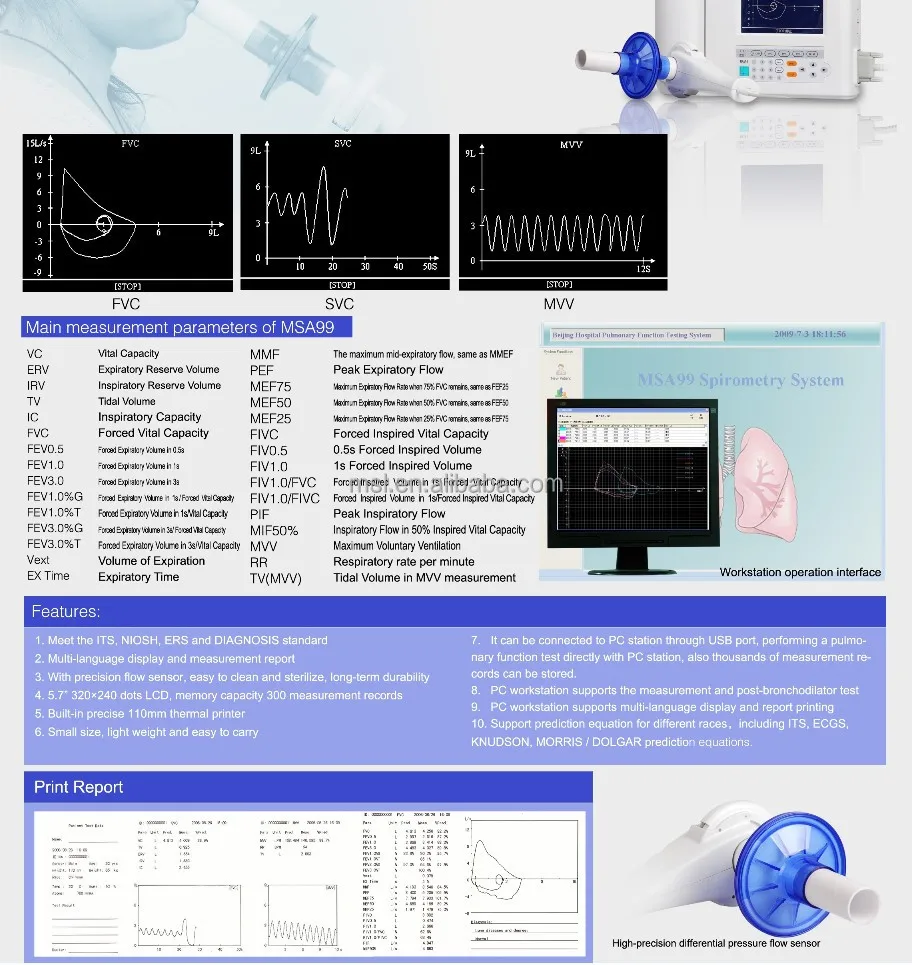

Measurement means
|
Flow velocity detection: pressure gradient pneumatic flow sensor
|
|
Capacity detection: flow velocity integral
|
measuring range
|
Capacity range: 0L ~ 9L
Flow velocity range: 0 ~ 14L / s |
measurement accuracy
|
Capacity:
0L ~ 1.6L (± 50ml) 6L ~ 9L (± 3%) |
|
Flow rate: 5% or 0.2L / s
|
|
Respiratory rate:
4 / 20 ~ / min (± 1 / min) 20 / 60 / min (error: ± 5%) |
measuring timelimit and degree
|
Vital capacity: every 50s, measuring 3
FVC: per second, 25s, measuring 3 The maximum ventilation volumn: every 12 seconds, measuring 3 |

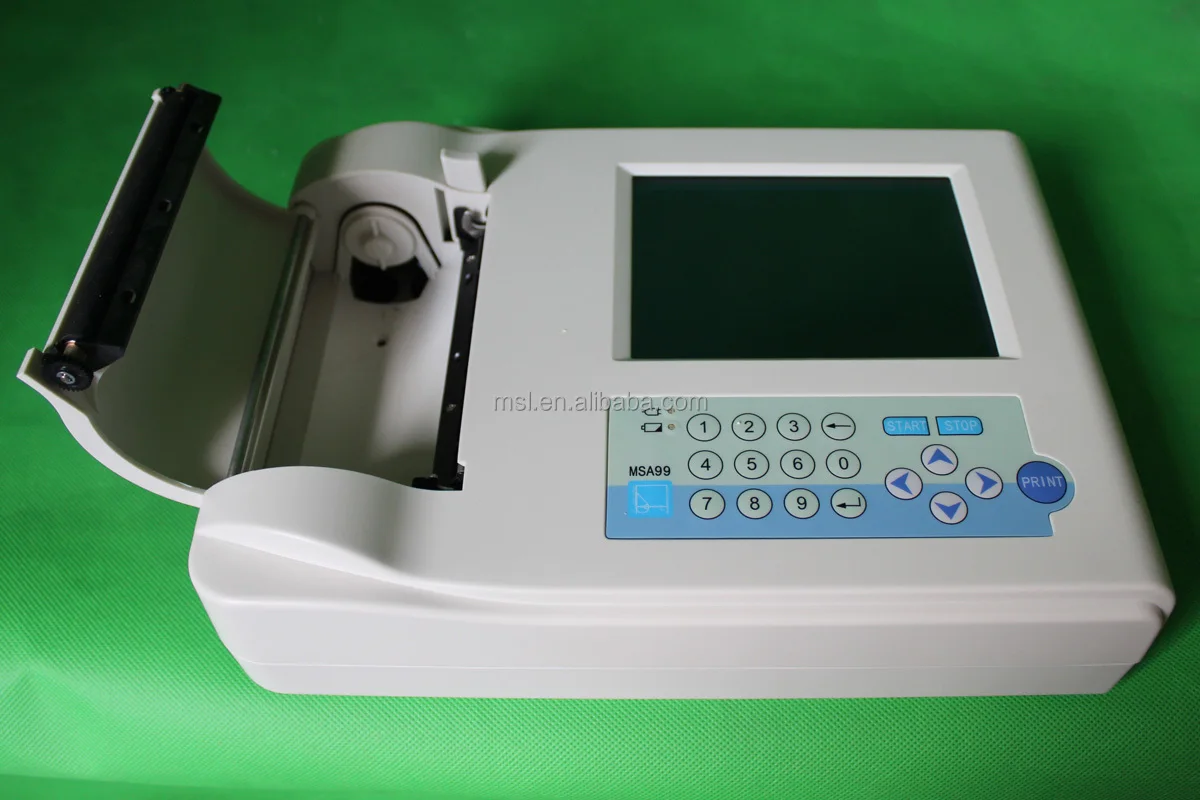

Paper Recorder
|
Method: dot matrix
|
|
Level Resolution Ration: 8 d/mm(speed 25mm/s)
Uprightness Resolution Ration: 8 d/mm |
|
Wave Channels: 1
|
|

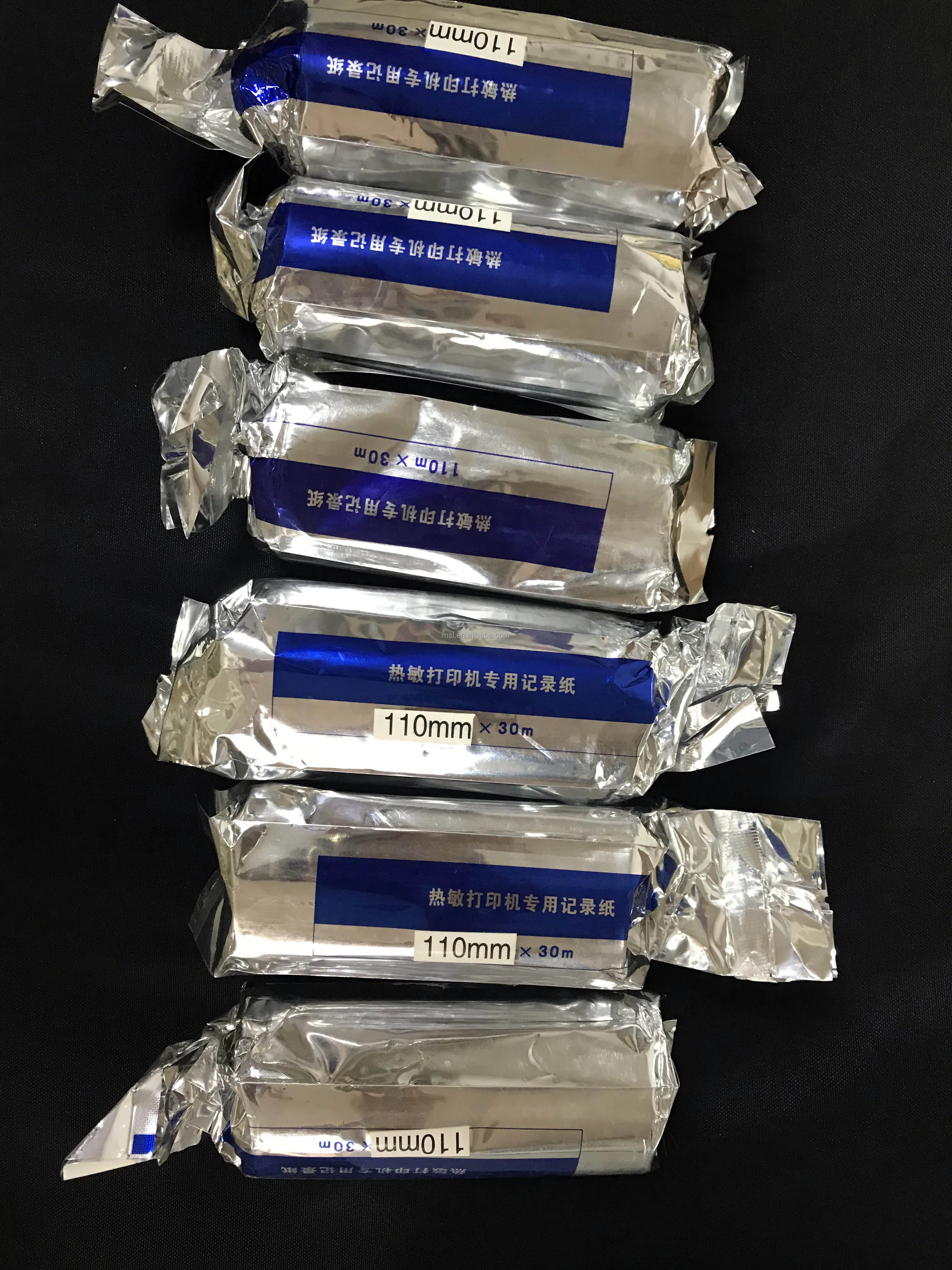

Paper Width: 110mm(1.97inches)
Paper Length: 15m(100inches) |
|
Formfeed Speed: 12.5,25 and 50mm/s(±2%)
|

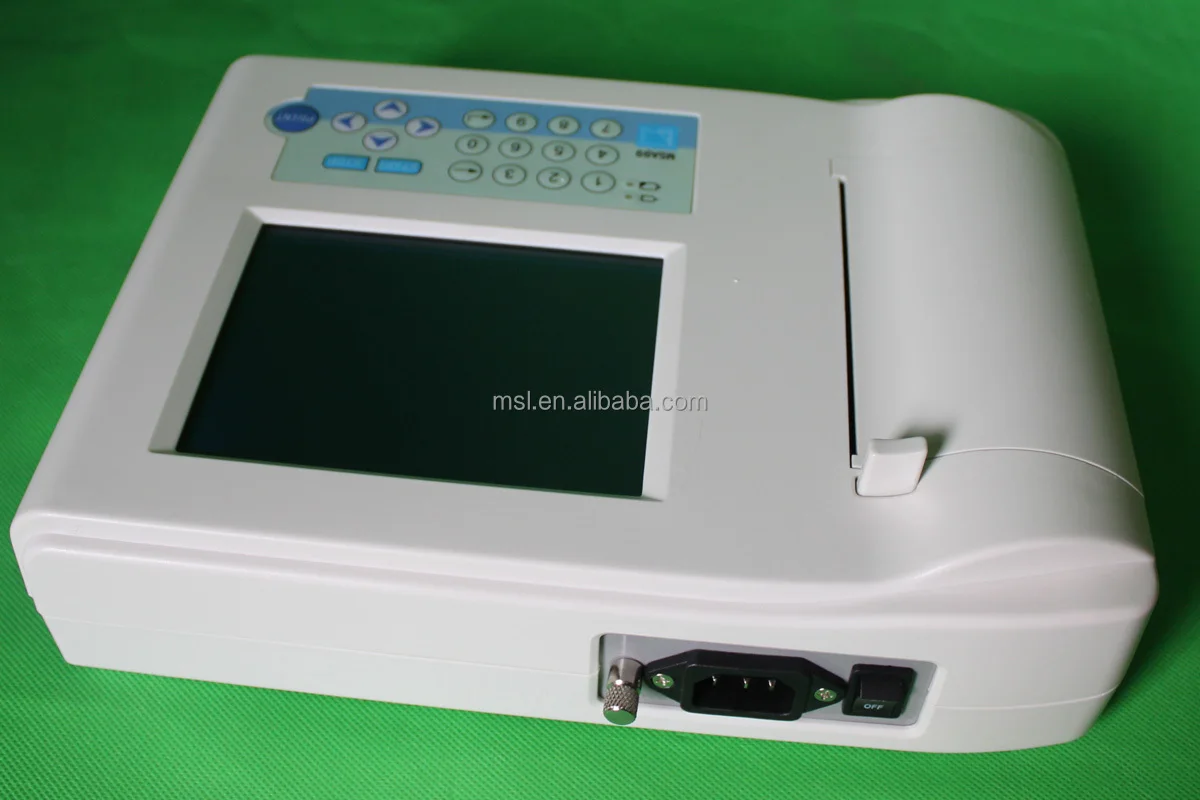

Power supply
|
AC: 100V~240V
DC: rechargeable Nickel-metal hydride (NI-MH), 14.4-volt, 1.8 amp hour |
![](https://ae01.alicdn.com/kf/S9cba2f7a9d314ed0a93db9b34063b72e6.jpg?width=3024&height=4032&hash=7056)
![](https://ae01.alicdn.com/kf/S61432cceedf6437aa0eb9ea43f9bb5ccG.jpg?width=3024&height=4032&hash=7056)
![](https://ae01.alicdn.com/kf/Sf3ab656fbb014abfb0dd1ba730b876a5D.jpg?width=750&height=926&hash=1676)
![](https://ae01.alicdn.com/kf/S3b1e678ab6304b5a90e28298a529db55Z.jpg?width=966&height=1168&hash=2134)
![](https://ae01.alicdn.com/kf/S8b20a484a2774a2abb4223bfa3143344d.jpg?width=750&height=1235&hash=1985)
![](https://ae01.alicdn.com/kf/S5767ccb36f0f492398f98bd12a102487I.jpg?width=750&height=390&hash=1140)
![](https://ae01.alicdn.com/kf/S1a3191a2143c462bafb09d8ccaba7867Z.jpg?width=750&height=346&hash=1096)
![](https://ae01.alicdn.com/kf/Sbd0aeb3504e34e5eb39a1e9baa8246886.jpg?width=752&height=334&hash=1086)
