- Type: Other
- Origin: Mainland China
- Place of Origin: Jiangsu, China
- Brand Name: Healicom
- Model Number: HMD-A3
- Power Source: Electric
- Warranty: 1 Year
- After-sale Service: Online technical support
- Material: Plastic
- Shelf Life: 2 years
- Quality Certification: ce
- Instrument classification: Class II
- Safety standard: None
Welcome to our shop. Nice to meet you, I am Sophia from China. In order to better answer your question, please tell me your specific product requirements, I will reply you in time after I see the information, thank you very much! If you need me to reply to you now, you can add my whats.app: +86 18610876284 so that I can reply to you in time, thanks again! I wish you a happy life!

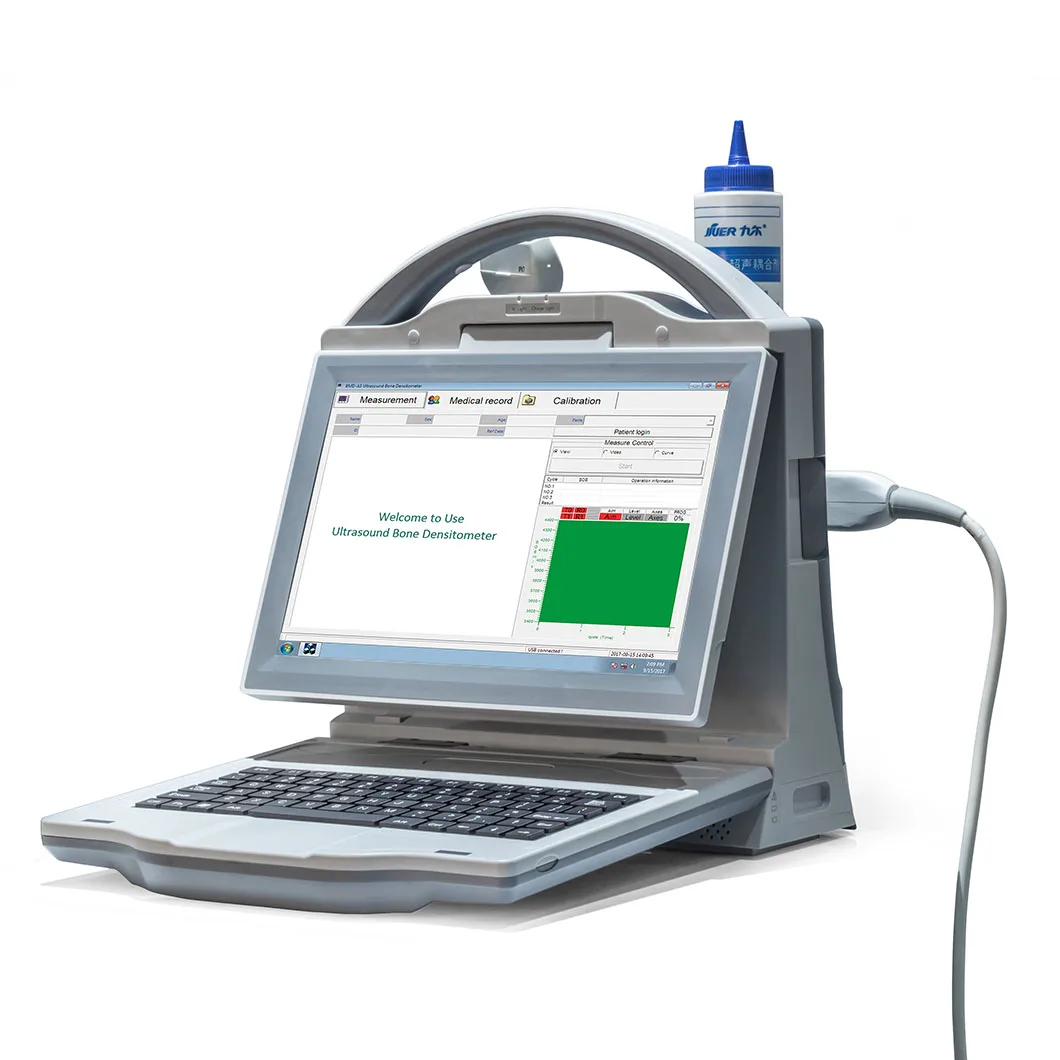

Features: 1. Using the full dry technology, makes diagnostic more convenient. 2. The probe adopt the Technology of the United States DuPont, makes the probe to receive higher sensitivity and better reception. 3. The better ultrasonic frequency on the measuring position, with better penetrability, more effective signal 4. Use the ultrasonic axial conduction technology, double emission and double receiving, it can provide more effective data 5. With innovative algorithm, effectively remove clutter and jamming signal, to get the valid data. 6. With a special correction system, to correct the system error effectively, get more accurate measurement results. 7. Multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals. 8. It with multi race clinical database, including: European, American, Asian, Chinese, WHO international compatibility. It measuring the people between the age of 0 and 100. 9. English menu 10. the first one pass EMC test 11. CE certificate. 12. ROHS certificate 13. LVD certificate. 12. ISO Certificate.
|
Technical Specifications
|
||
|
Measurement parts
|
radius and Tibia
|
|
|
Measurement mode
|
double emission and double receiving
|
|
|
Measurement parameters
|
Speed of sound (SOS)
|
|
|
Analysis Data
|
T- Score, Z-Score, Age percent[%], Adull percent[%], BQI (Bone quality Index ), PAB[Year] (physiological age of bone), EOA[Year]
(Expected Osteoporosis age), RRF(Relative Fracture Risk) |
|
|
Measurement Accuracy
|
≤0.25%
|
|
|
Measurement Reproducibility
|
≤0.25%
|
|
|
Measurement time
|
<25 seconds
|
|
|
Probe frequency
|
1.20MHz
|
|
|
Date analysis
|
it adopt a special intelligent real-time data analysis system, it selects the adult or child databases according to the age automatically
|
|
|
Temperature control
|
Perspex sample with temperature instructions
|
|
|
Probe measurement navigation
|
this equipment display the Axial angle , the Horizontal Angle , the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data. It is easy to correct the measure angle quickly, improving the measure speed, improving the data Accuracy
|
|
|
Probe crystal indication
|
it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception
|
|
|
Daily Calibration
|
automatic calibrating after power on
|
|
|
Monitor
|
10.4’ color HD color LED monitor
|
|
1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it’s model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
