- Type: Hand Tool Parts
- Origin: Mainland China
- Place of Origin: Guangdong, China
- Brand Name: SUNNYMED
- Model Number: SY-AC048
- Power Source: Electric
- Warranty: 1 Year
- After-sale Service: Online technical support
- Material: Plastic
- Shelf Life: 1year
- Quality Certification: ISO
- Instrument classification: Class II
- Safety standard: None
- Product name: Handheld Ultrasound Scanner
- Monitor: AMOLED full touch screen
- Probe Type: 128 elements
- Frequency: Convex 2-5MHZ/Linear5-10MHZ/High frequency linear array8-12MHZ
- Imaging Mode: B ,C,2B,M, PW, Steer
- Color Doppler: Gain, Steer, PRF, WF etc.
- Cine-loop: 1024 Frames
- Frame Rate: Convex:16fps / Linear:24ps
- Depth: Convex:≤200mm /Linear: ≤70mm
- Grayscale: 256 level
Specification
|
item
|
value
|
|
Model Number
|
SY-AC048
|
|
Product name
|
Handheld Ultrasound Scanner
|
|
Monitor
|
6 inch AMOLED high-resolution full touch screen
|
|
Probe Type
|
128 elements
|
|
Frequency
|
Convex array 2-5MHZ / Linear array 5-10MHZ/High frequency linear array8-12MHZ
|
|
Imaging Mode
|
B ,C,2B,M, PW, Steer
|
|
Color Doppler
|
Gain, Steer, PRF, WF etc.
|
|
Cine-loop
|
1024 Frames
|
|
Frame Rate
|
Convex:16fps / Linear:24ps
|
|
Depth
|
Convex:≤200mm / Linear: ≤70mm
|
|
Grayscale
|
256 level
|
|
TGC Adjustable
|
Yes
|
|
Gain
|
Convex: 0~150dB adjustable
Linear: 0~120dB adjustable |
|
Color Gain
|
0~100dB adjustable
|
|
Image Processing
|
Line smoothing, Frame smoothing, Transversal filter, Longitudinal filter, Sharpening, Gamma transformation, etc.
|
|
Image Processing stage
|
3 level
|
|
Power
|
Built-in battery(5400mAh) to support 2h for continuous scanning
|
|
Image Format
|
JPEG, DICOM
|
|
Language
|
Over 20 different language including English, Spanish, German, Russia, Portuguese, Turkish, Polish, Italian etc.
|
|
Measurement
|
Length, Area, Arrow, Angle, Perimeter, Text,
IMT ,DDH. |
|
Wireless Connection
|
WIFI,Bluetooth,3G/4G
|
|
Memory
|
64GB
|
|
Connection Interface
|
Micro USB2.0,3.5mm headphone jack,
USB probe plug-in port, HDMI |
|
Printer
|
WIFI printer
|
|
Pre-set
|
Linear :Small Parts,Muscle,Vascular,Superficial,PICC,AI Demo;
Convex: General,Obsterics |
|
Remote Software Update
|
Yes
|
|
Camera
|
5M auto focus
|
|
File Management
|
Patient file & image file
|
|
Standard Configuration
|
Main unit (Monitor and 1pc Transducer included): 1set
USB wire: 1pc Adapter: 1pc Carrying bag: 1pc |
|
Optional Probe(changeable)
|
High frequency 12MHz linear probe,3.5MHz convex probe,7.5MHz linear probe
|
|
Product Size
|
165*85*23mm
|
|
Net Weight
|
Convex:570g / Linear:550g
|
Product Description
Packing & Delivery
Carton, Standard export packing for Handheld Ultrasound Scanner

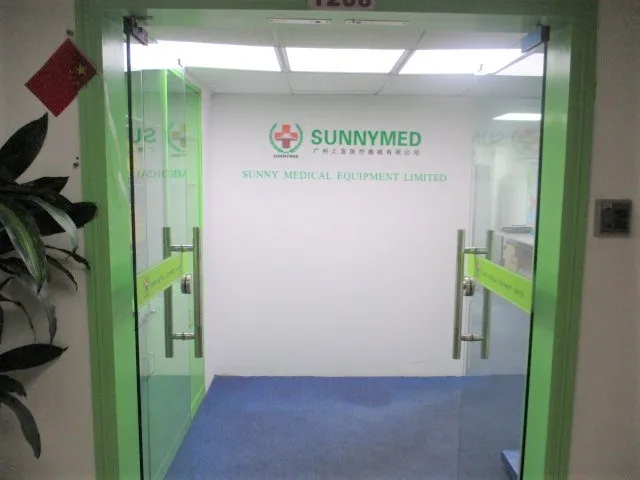

Company Profile
Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years’ experience. Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients. Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
