- DIY Supplies: ELECTRICAL
- Brand Name: LanYuXuan
- Origin: Mainland China
- Type: Blood Analysis SYstem
- Brand Name: Mindray
- Model Number: BC5000
- Place of Origin: Guangdong, China
- Instrument classification: Class II
- Warranty: 1 Year
- After-sale Service: Online technical support
- Product name: 5-part hematology analyzer
- Application: Clinical Detection
- Function: Blood Analysis
- Reagent: Diluent, DIFF lyse, LH lyse, probe cleanser
- Language: Enlglish
If you have any questions, please contact us ，WhatsApp:+86 13808431675，Email:1005681402@qq.com

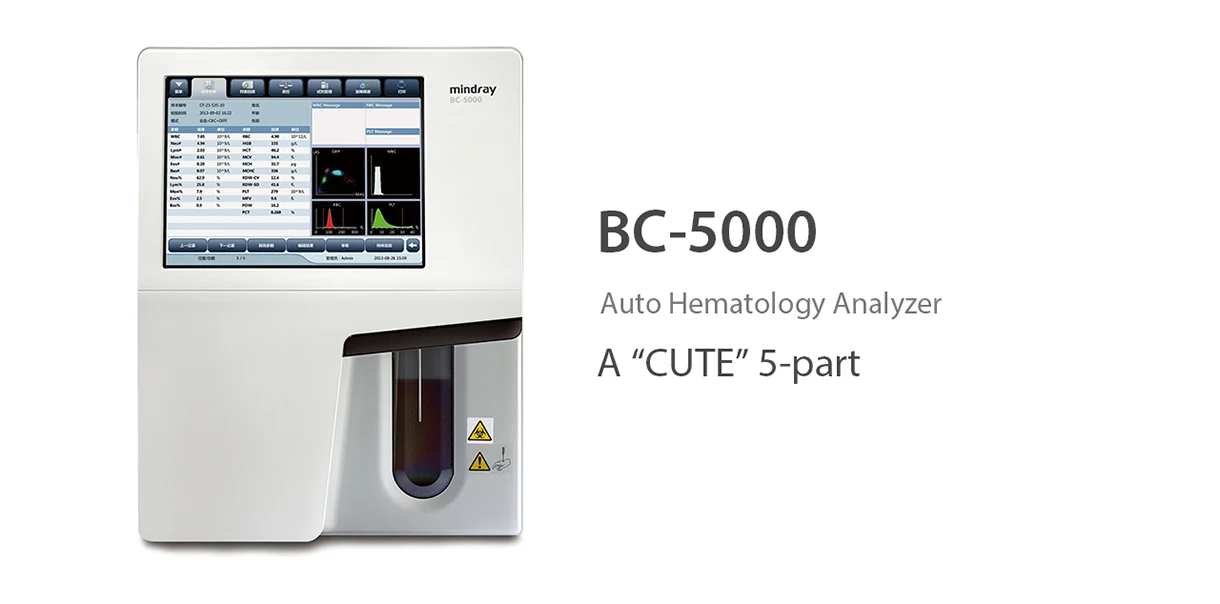

Products Description
1. Compact
Two kinds of lyse reagents are located inside of BC-5000, which helps the small labs to save space.
2. Utility
1)The 10.4 inch TFT touch screen with a wide viewing angle, brings convenience to clinicians. Users can complete all instrument operations on the screen, practically eliminating the need for an external PC.
2)BC-5000 inherits it’s convenient and proven powerful software design from BC-6800 and BC-3600 platforms, the friendly interface is ideal for small sized labs.
3)Running capillary blood through the sample probe directly is more convenient for the users in children’s hospitals, etc. For Prediluted mode, BC-5000 has higher dilution ratio than other 5-part hematology analyzers, thus it brings a better mixing effect.
4)4 USB ports are located on the instrument’s left side. They permit BC-5000 users to transmit data conveniently and connect with printers,keyboard, mouse, barcode scanner, etc.
5)BC-5000 supports bi-directional LIS with test results and patient information. HL7 protocol is supported as well.

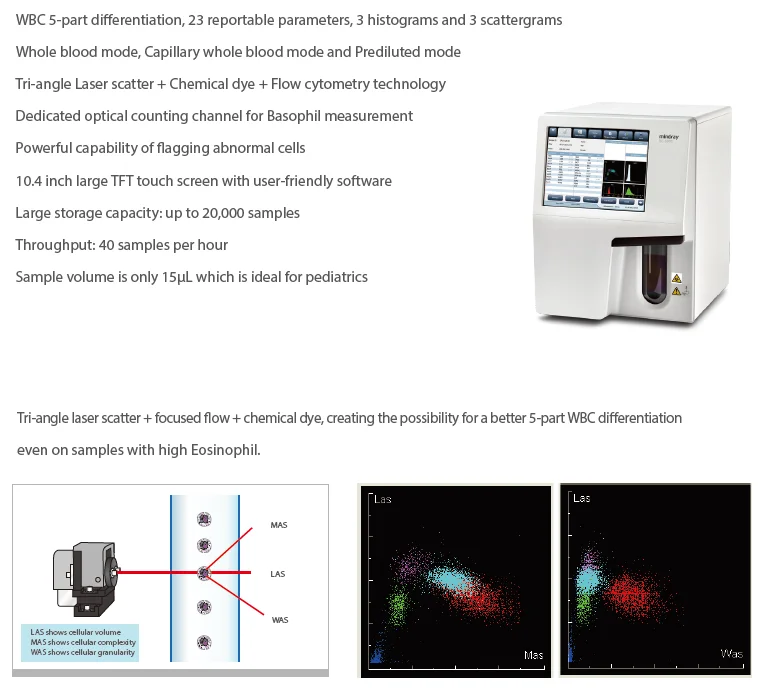

3. Technology
1)Compared with traditional helium neon laser or argon laser, semi-conductor laser has smaller size, lower cost and
longer life cycle.
2)Improved DC impedance technology is used to count and size the RBC and PLT. The smaller counting aperture (50μm in diameter) provides better performance on samples with low PLT.
4. Effcient
Only three routine reagents are required. These have 2 years shelf life and also less consumed by BC-5000. Original QC and calibrator are also provided to ensure the hematology analyzer’s traceability and testing quality.
Product Paramenters
|
Reagent
|
M-52D Diluent, M-52DIFF Lyse, M-52LH Lyse, Probe Cleanser
|
|
|
Performance
|
||
|
Parameter Linearity Range Precision Carryover
WBC 0-100×109/L ≤2% (4-15×109/L) ≤0.5％
RBC 0-8×10¹²/L ≤1.5% (3.5-6.0×10¹²/L) ≤0.5％ HGB 0-250g/L ≤1.5% (110-180g/L) ≤0.6％ PLT 0-1000×109/L ≤4.0% (100-500×109/L) ≤1.0％ |
||
|
Parameters
|
23 parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-CV, RDW-SD, PLT,
MPV, PDW, PCT3 histograms for WBC, RBC and PLT 3 scattergrams for WBC differential |
|
|
Sample Volume
|
Prediluted mode : 20 μL
Whole blood mode : 15 μL
Capillary whole blood mode: 15μL |
|
|
Throughput
|
40 samples per hour
|
|
|
Display
|
10.4 inch TFT Touch Screen
|
|
|
Multi-language
|
Chinese, English, Spanish, Portuguese, Russian, French, Bahasa Indonesia
|
|
|
Data Storage Capacity
|
Up to 20,000 results including numeric and graphical information
|
|
|
Communication
|
LAN port supports HL7 protocol
|
|
|
Interface
|
USB, LAN
Support bi-directional LIS
|
|
|
Printout
|
External Thermal printer / Laser printer / Inkjet printer, various
|
|
|
Operating Environment
|
Temperature: 10°C~30°C
Humidity: 20%~85%
Air pressure: 70 kPa~106 kPa
|
|
Company profile
Shenzhen Jackantler is professional medical equipment manufacturer and supplier and solution provider. JackAntler not only has own R&D centers and production base in China, we also have several branch offices, reaching a complete network of R&D, production, sales, and service.
Our goal is to bring high quality, and high cost-effective products to costumers.
JackAntler Sales team not only are professional and experienced, but they also have medical and engineering knowledge background, so they can work with our local partner to bring our product into the market. JackAntler has already sold products in over 60 countries, including the USA, UK, Korea, Japan, Germany, Italy, Switzerland, Brazil and so on. We have build close relationship with many distributors and become strategic partners.
Delivery
– FedEx/DHL/UPS/TNT for samples, Door-to-Door
– By Air or by Sea for mass production, Please advice Airport/ destination port
– Customers specifying freight forwarders or negotiable shipping methods
FAQ
Questions of Company:
Q1: Are you manufacturer?
A1: Yes, our factory has been for 5 years.
A1: Yes, our factory has been for 5 years.
Q2: The company established time and where are you?
A2: Our company was established in 2015, our company located in Shenzhen City, GuangDong.
Q3: Do you have any factory audits?
A3: Yes,now we have passed ISO13485, CE, etc.
Questions of Order:
Q1: Can you provide OEM or ODM service?
A1: Yes, we have strong developing team to support OEM and ODM service. The products can be made according to your request.
A1: Yes, we have strong developing team to support OEM and ODM service. The products can be made according to your request.
Q2: What is your terms of delivery?
A2: FOB/CIF/Door to Door/By air as you like.
Reviews
There are no reviews yet.
