- Type: Hand Tool Parts
- Origin: Mainland China
- Place of Origin: Jiangsu, China
- Brand Name: MJ
- Model Number: MJ-KR-4
- Power Source: Electric
- Warranty: 2 years
- After-sale Service: Online technical support
- Material: Metal, Resin
- Shelf Life: 2 years
- Quality Certification: ce
- Instrument classification: Class II
- Safety standard: None
- Product name: Video fiber bronchoscope
- Display: 3.5"high LCD
- display resolution ratio: 960*240
- battery: rechargeable lithium battery
- Depth: 3-100mm
- diameter of distal-end: 2.8mm, 3.8mm+1.2mm channel
- warranty: 2 year
- Function: take photo,video,save
- working lenght: 300-600mm
- View of field: 90°
![](https://ae01.alicdn.com/kf/S7455518f96f14ccdad2de2e6df6e066cF.jpg?width=700&height=700&hash=1400)
![](https://ae01.alicdn.com/kf/S91070423a78d499eb7a262ae2fae65b0X.jpg?width=2592&height=3888&hash=6480)
![](https://ae01.alicdn.com/kf/S9405bfa46c014aedb90062b211ec4fc97.jpg?width=1291&height=779&hash=2070)

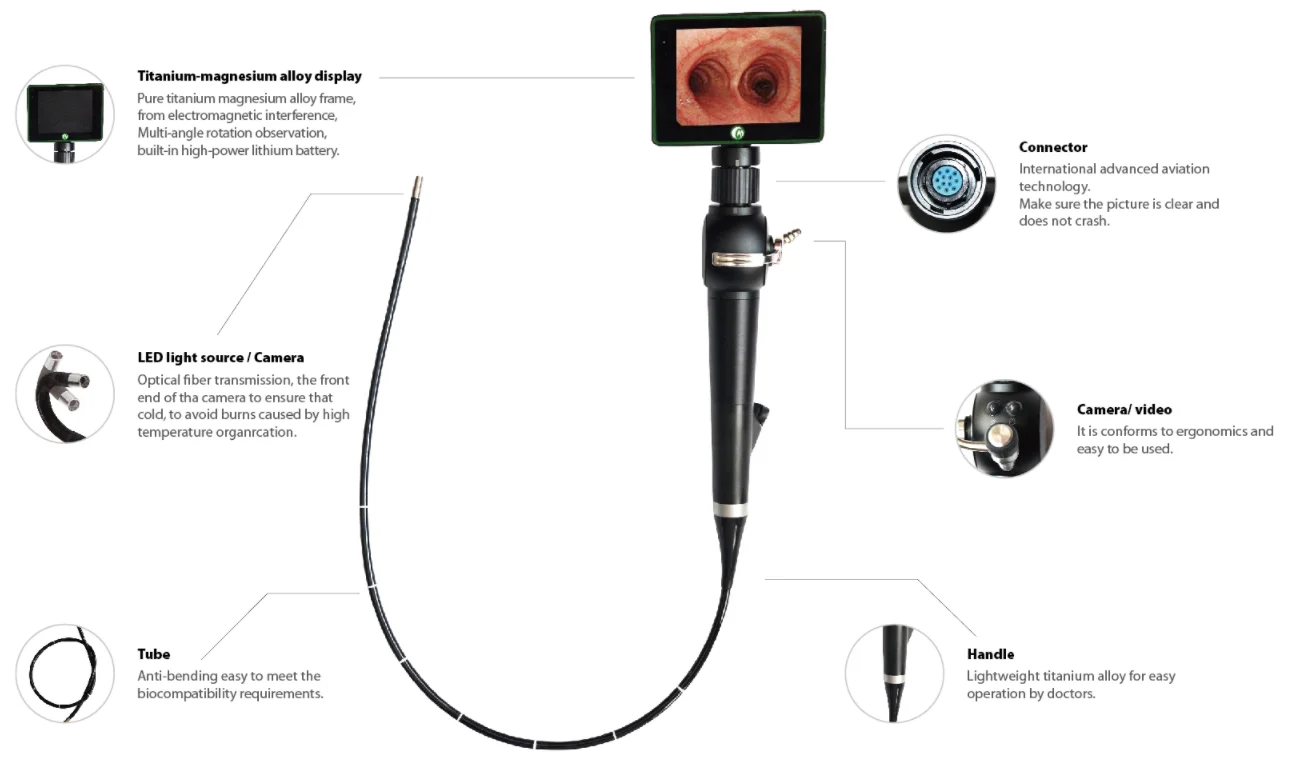

Product name
|
Video Bronchoscope/laryngoscope
|
Model
|
MJ-KR-4
|
Material
|
Titanium-magnesium alloy
|
Display
|
3.5″ TFT LCD
|
Resolution
|
960 * 240
|
Working length
|
300-600mm
|
Resolution
|
600,000 pixel
|
Light source
|
800lux
|
Output
|
DC 5V, 1000mA.
|
Battery
|
Rechargeable lithium battery
|
Bending
|
150⁰up and 130⁰ down
|
Focal range:
|
5 – 50 mm
|
![](https://ae01.alicdn.com/kf/S11cdea801fa64b5db9b74a7fc2cafbf80.jpg?width=616&height=550&hash=1166)
![](https://ae01.alicdn.com/kf/S2eb91cdbd57245b885b6d3b8c67213c6v.jpg?width=4032&height=3024&hash=7056)

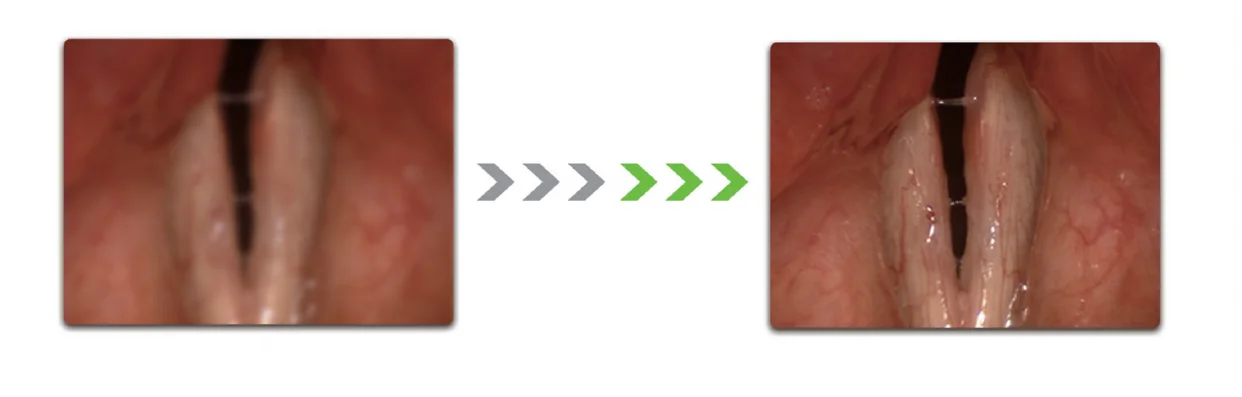

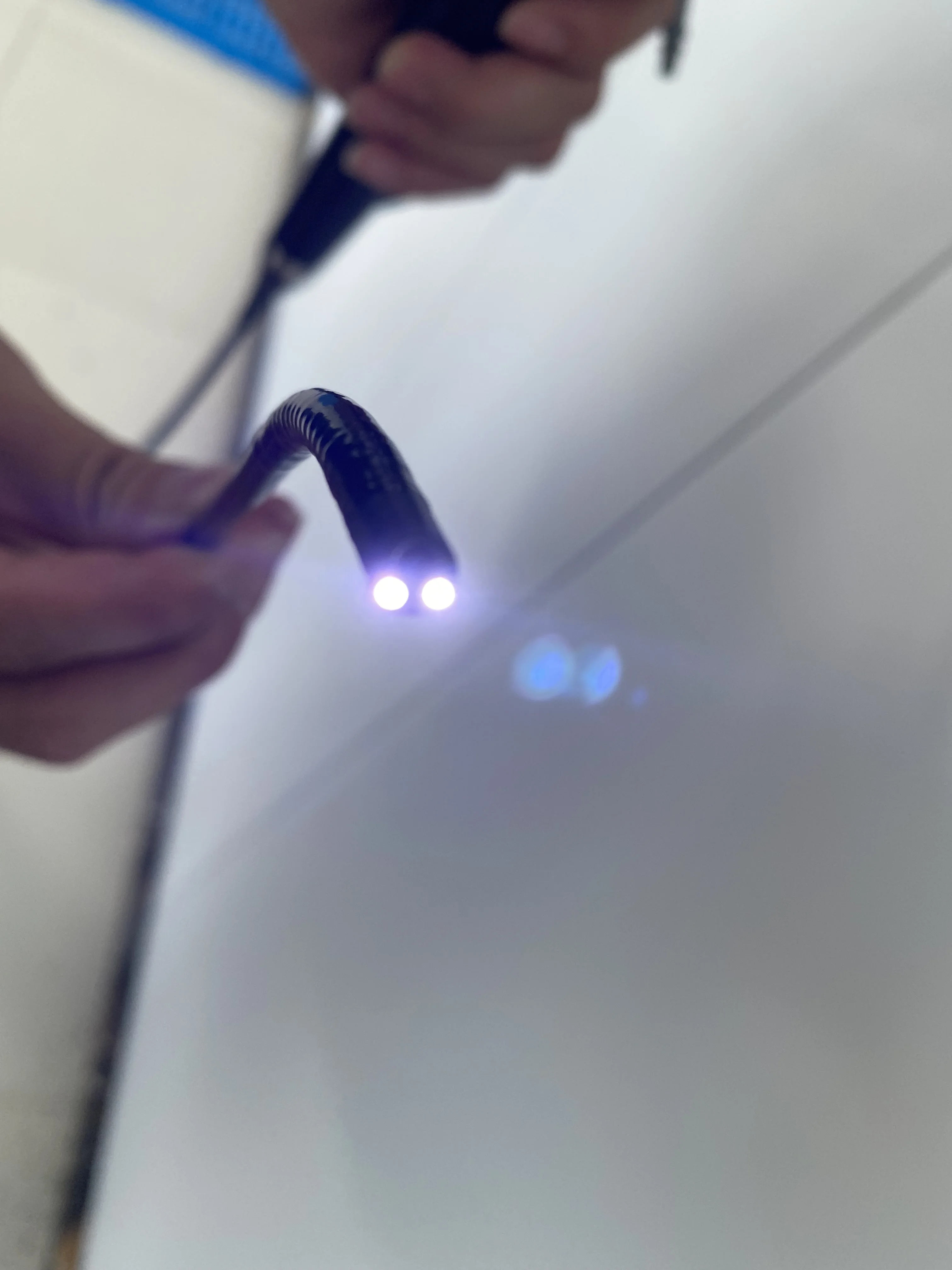

* LED white light illumination ≥800lux, nano anti-fog cold light source anti-fog technology, durable.
![](https://ae01.alicdn.com/kf/S5ff092cf07fd4ebdaa60c1c9bf426296V.jpg?width=3024&height=4032&hash=7056)

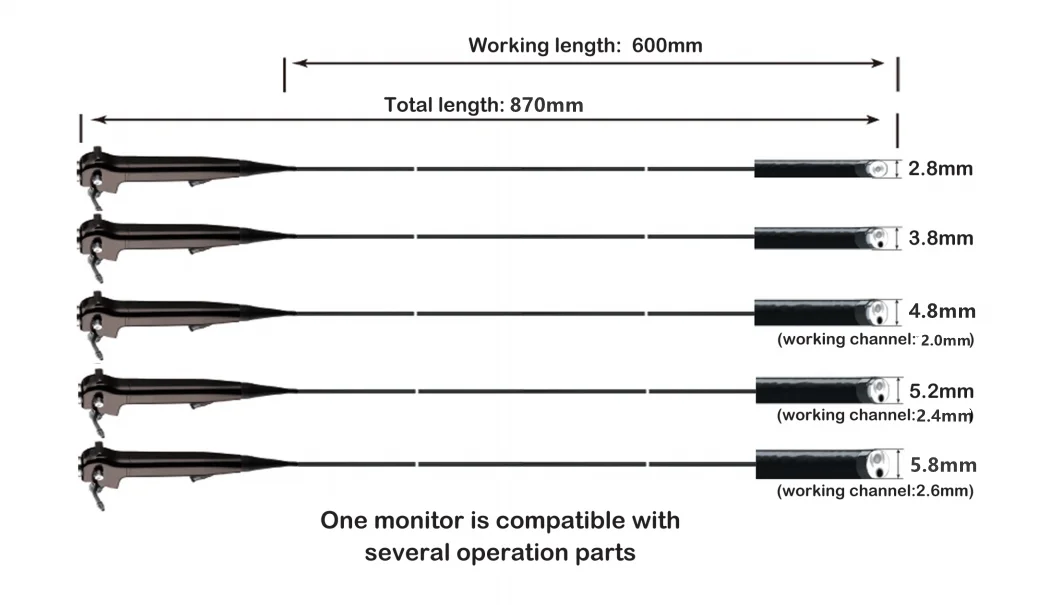

* working channel updraded from 1.2mm to 2.6mm, greatly improved work efficiency.
Video bronchoscope φ5.8mm with working channel: 2.6mm
Video bronchoscope φ5.2mm with working channel: 2.0mm/2.2mm/2.4mm/2.6mm
![](https://ae01.alicdn.com/kf/S14d4efd37b3c4f8eb72eee3f13fbe8cbD.jpg?width=1053&height=605&hash=1658)
![](https://ae01.alicdn.com/kf/S72015d5ee28143ae82cf622637ee39fbs.jpg?width=1242&height=397&hash=1639)
![](https://ae01.alicdn.com/kf/Sdb05f7bb0e8749359d9880c02020f91bZ.jpg?width=507&height=204&hash=711)

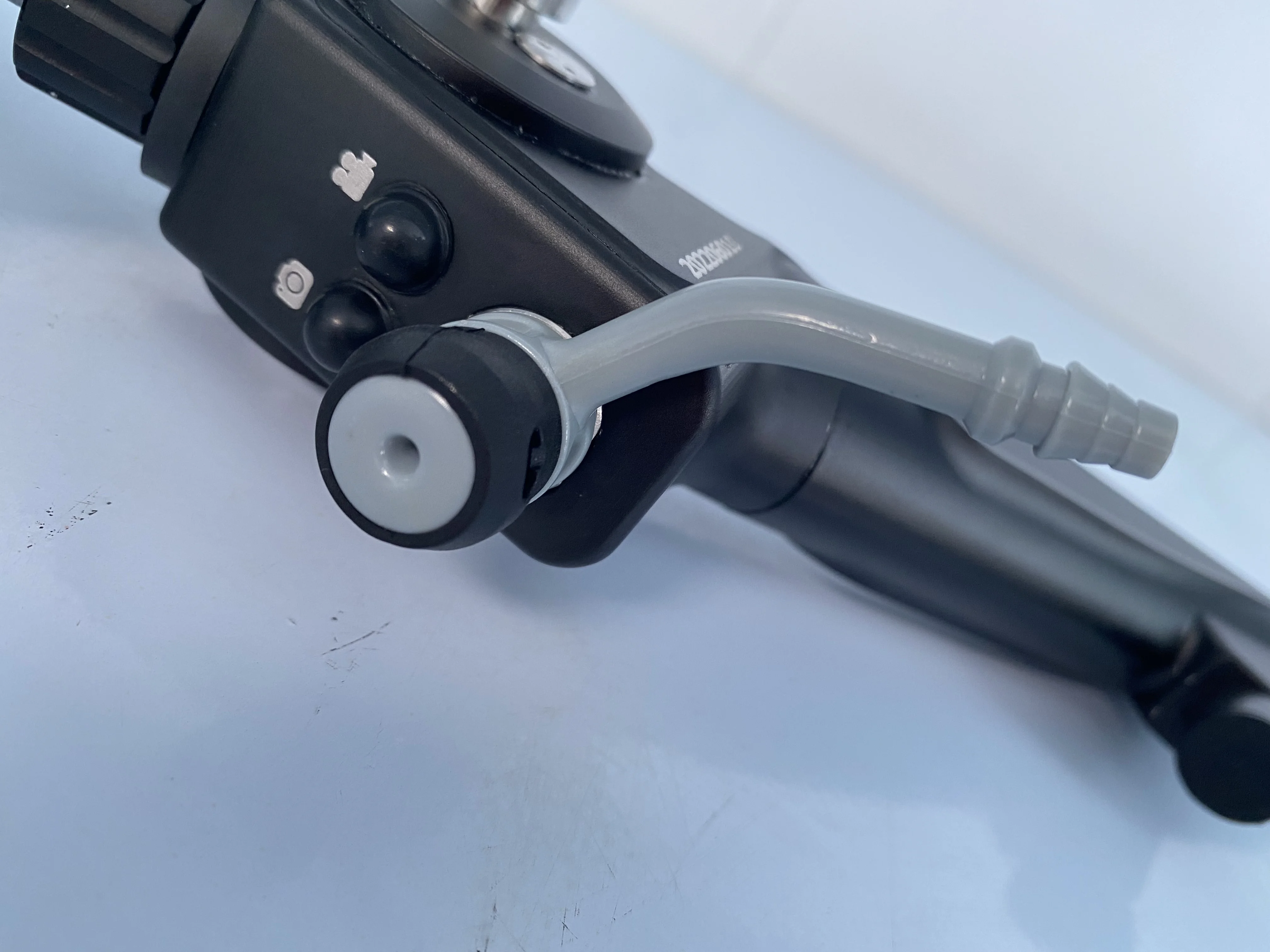

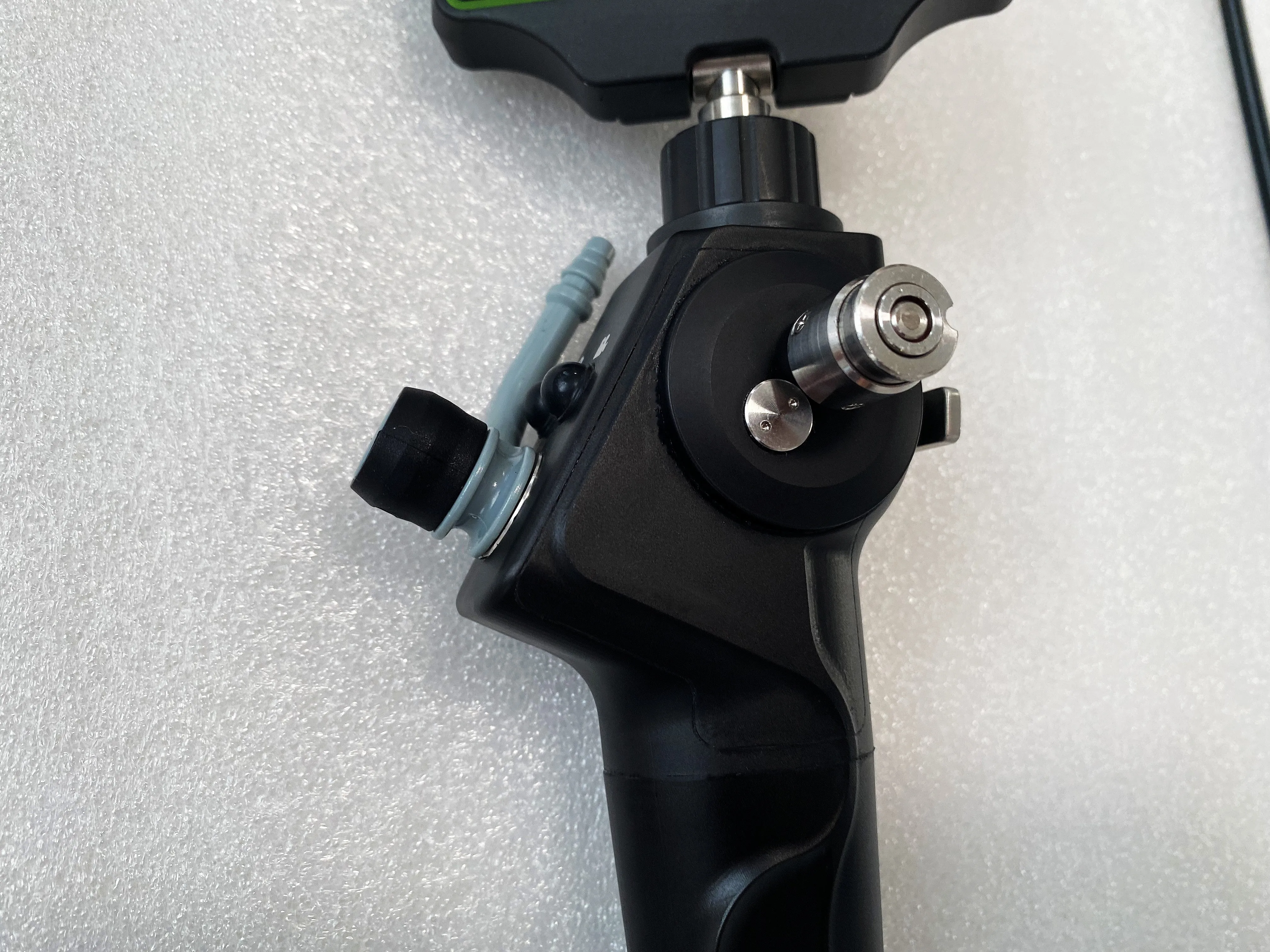

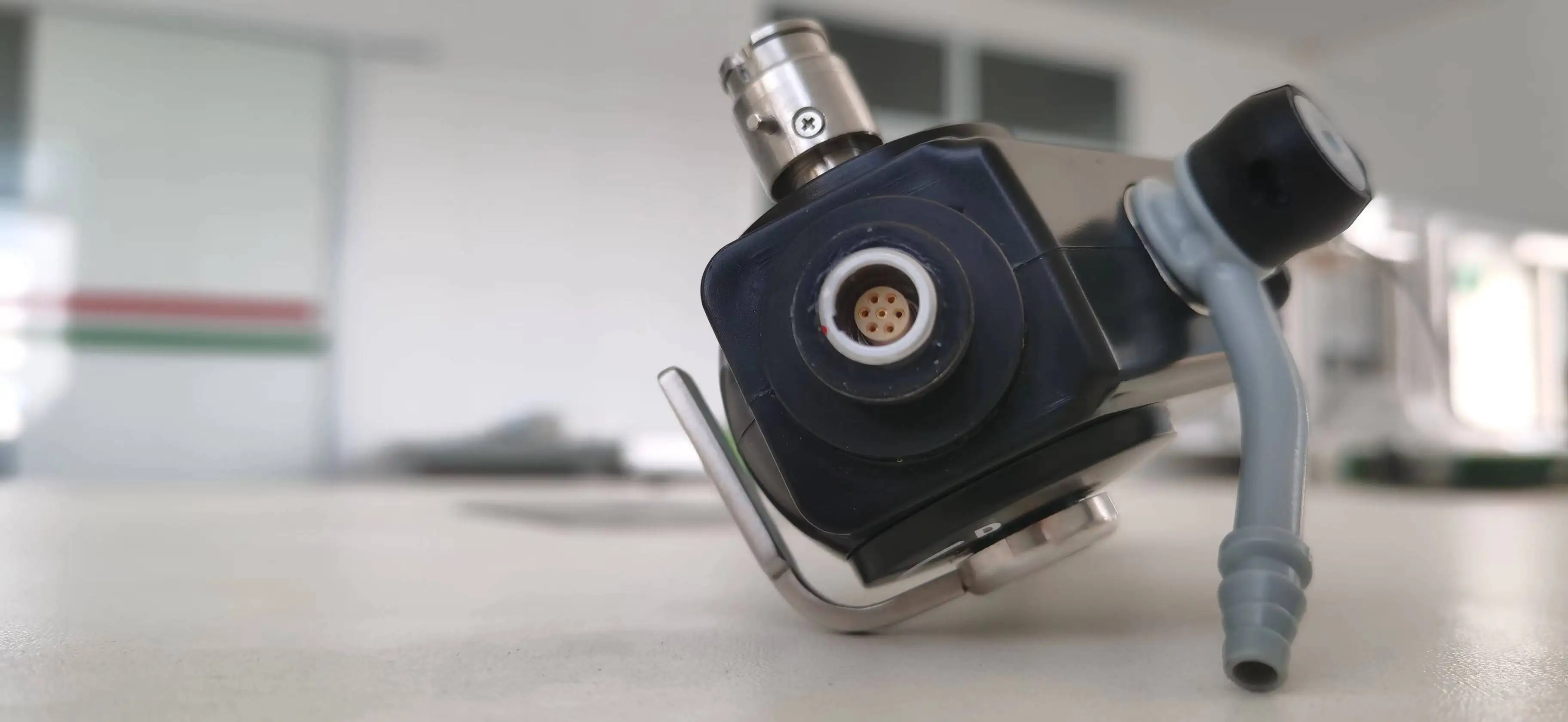

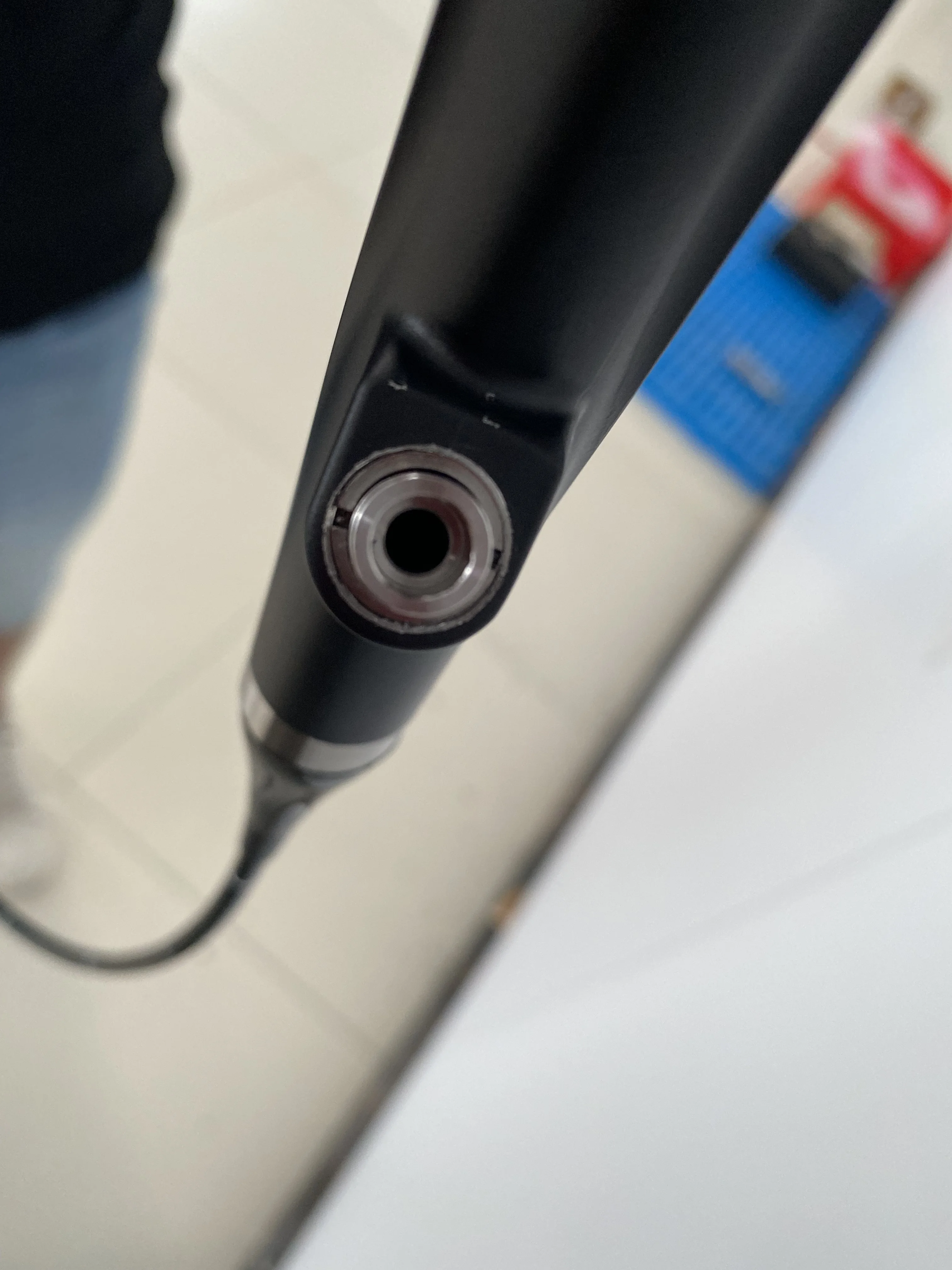

* Pictures of some important parts
![](https://ae01.alicdn.com/kf/Sca571753eb6d43e39a639c573aeba612d.jpg?width=4032&height=3024&hash=7056)
![](https://ae01.alicdn.com/kf/Sc3b10f55bbe44605a7f6301cf83cbd171.jpg?width=3024&height=4032&hash=7056)
![](https://ae01.alicdn.com/kf/S96468e08a4fc4bf29c3a754756daac15A.jpg?width=3648&height=1680&hash=5328)
![](https://ae01.alicdn.com/kf/S2eb91cdbd57245b885b6d3b8c67213c6v.jpg?width=4032&height=3024&hash=7056)

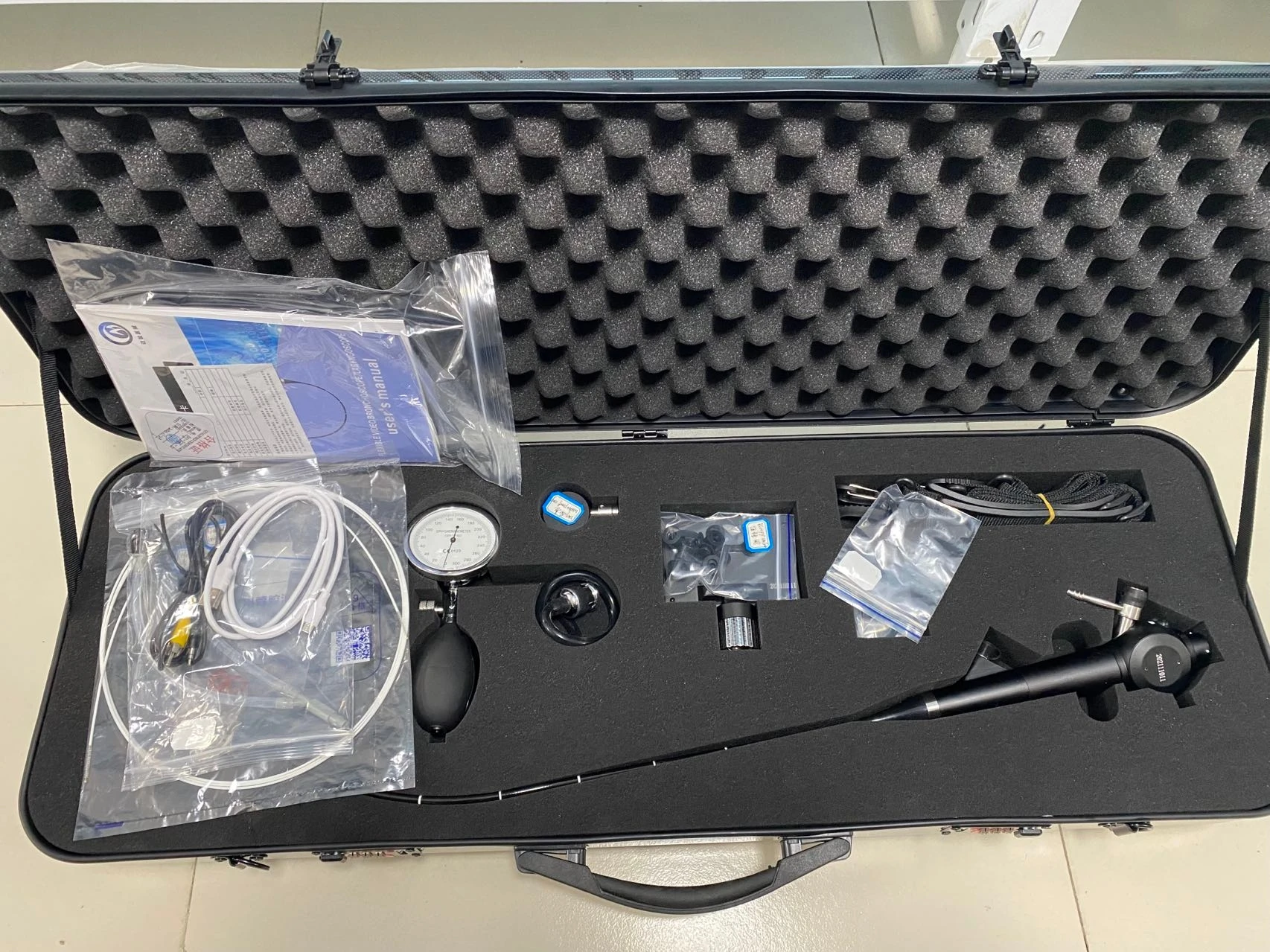

* Packing and accessories
![](https://ae01.alicdn.com/kf/Sa5dd996890e84e118b47c39e328bf9f7G.jpg?width=1706&height=1279&hash=2985)

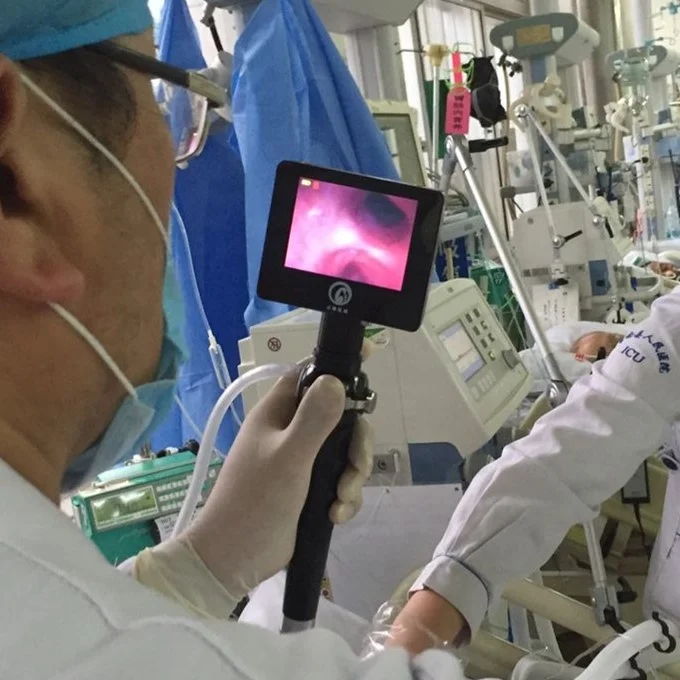

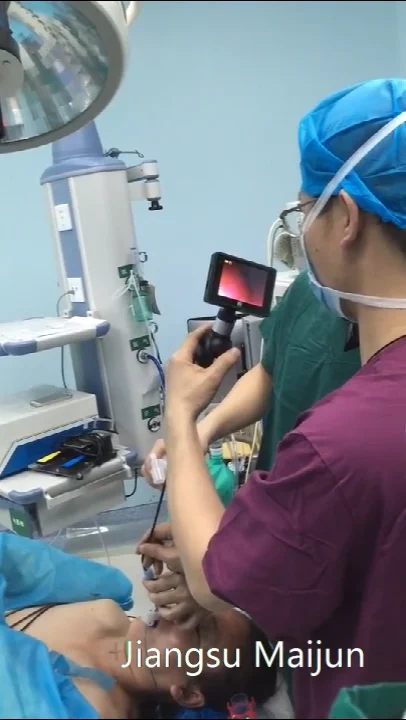

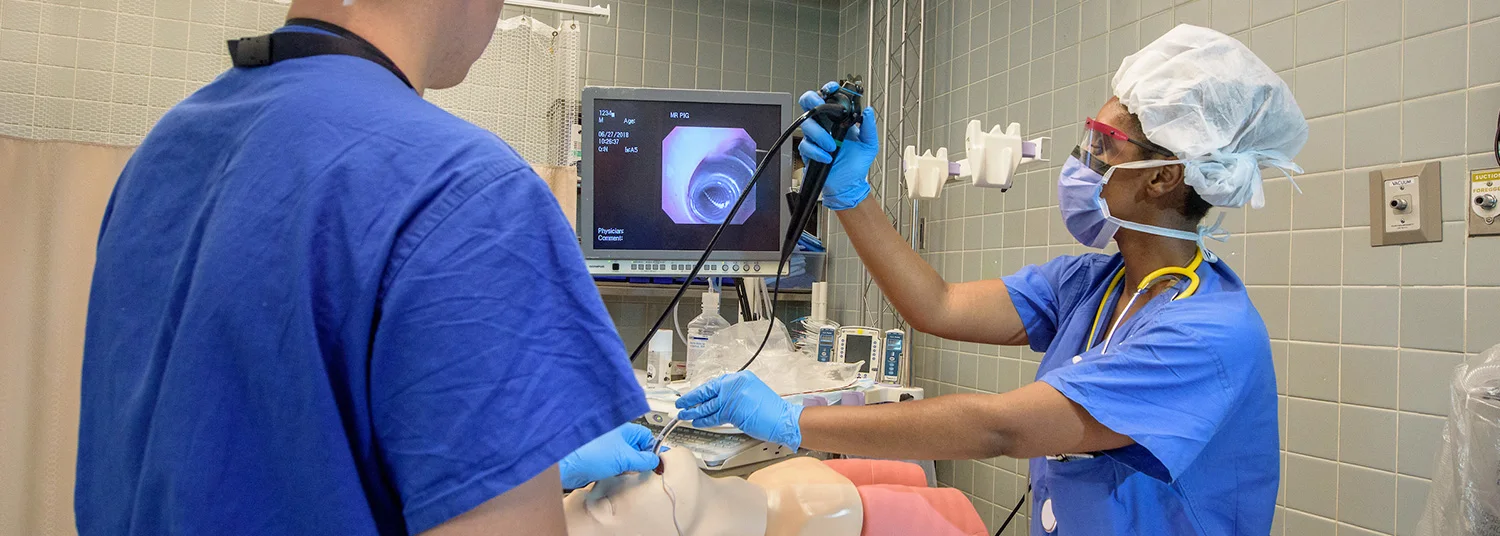

* Application site
![](https://ae01.alicdn.com/kf/S7af832d083204470a39c6db1268ff6a4M.jpg?width=1500&height=536&hash=2036)
![](https://ae01.alicdn.com/kf/S11d08f4e1ec34f139845d1fddc404e79a.jpg?width=406&height=720&hash=1126)
![](https://ae01.alicdn.com/kf/Sc581e1467bba4cde87a9fc2bd606c91bV.jpg?width=680&height=680&hash=1360)
![](https://ae01.alicdn.com/kf/S9485ea65c4eb412e93c426c767301474a.jpg?width=750&height=3063&hash=3813)
![](https://ae01.alicdn.com/kf/Saf91b6b5dd8d43fe85cf132befca55ffG.jpg?width=932&height=503&hash=1435)
![](https://ae01.alicdn.com/kf/Sf4d98f82fbc04f68acc6d28c4791cea8U.jpg?width=1263&height=860&hash=2123)
A: Yes, we have our own R&D team and sales team, We provide you one-stop service.
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight;
2.T/T:30% deposit by T/T,70%balance by T/T before shipment
3.Trade term: EXW, FOB Shanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package, standard export packages
2.All of the productions are inspected carefully by QC before delivery.
Q:How are we going to install the equipment after purchasing?
A: We provide professional installation video to illustrate.
Q:how about your after-service?
A:If package broken during transport ,please refuse and contact the carrier.
If any problem during usage ,pls contact us and we will reply within 24hours.
