- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Type: Biochemical Analysis System
- Model Number: BA-88A
- Place of Origin: Shenzhen Guangdong
- Instrument classification: Class II
- Warranty: 1 Year
- After-sale Service: NONE
- Light Source: Tungsten-halogen lamp 6V/10W
- Photometric Range: 0~3.5 ABS
- Optical path: 10mm
- Flowcell: Stainless steel with quartz window
Products Description
Semi-chemistry analyzer BA-88A product feature:
1. Straightforward software interface, easy to get started2. Large LCD touch-screen, clear and user-friendly
3. Two USB ports (2.0), for keyboard, mouse, printer
4. Support two testing modes: Flowcell or Cuvette
5. easy to shift between modes
6. Easy maintenance: remove black cover to change lamp

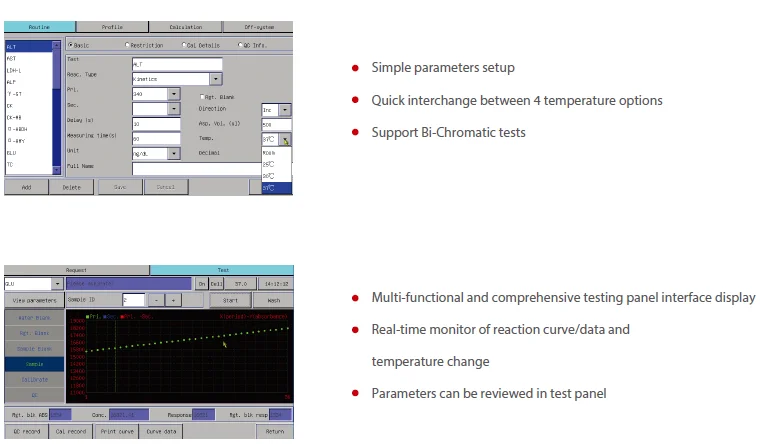

7. Simple parameters setup
8. Quick interchange between 4 temperature options
9. Support Bi-Chromatic tests
10. Multi-functional and comprehensive testing panel interface display
11. Real-time monitor of reaction curve/data and temperature change
12. Parameters can be reviewed in test panel
Product Paramenters
|
Light Source
|
Tungsten-halogen Iamp 6V/10W
|
|
Stray light
|
< 0 . 1 % @ 340nm
|
|
Photometric Range
|
0~3.5 ABS
|
|
Stability
|
< 0 . 005A / 20min @ 340nm
|
|
Measuring volume
|
32μL
|
|
Optical path
|
10mm
|
|
Storage
|
More than 3000 sample results; More than 1000 QC results
|
|
Input
|
Touch screen with touch pen and popup keypad Mouse or Keyboard via USB
|
|
Humidity
|
35％~85%, no condensation
|
|
Temperature
|
15°C~30°C
|
|
Power Requirement
|
Wide power supply : AC 100-240V, 50 / 60Hz
|
|
Dimension
|
430mm x 360mm x 170mm ( L x W x H )
|
|
Weight
|
6.8 Kg
|
